Golf Mk5

Checking swivel joint
Checking swivel joint

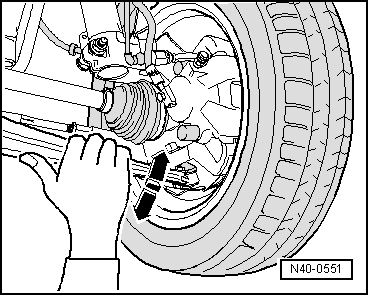

Checking axial play

–  Firmly pull suspension link down in -direction of arrow- and press up again.

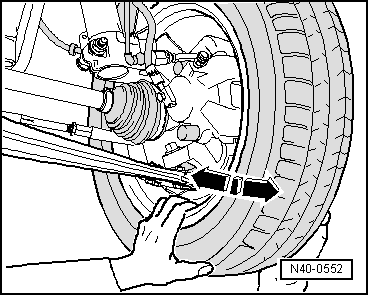

Checking radial play
  N40-0551
–  Press lower part of wheel forcefully inwards and outwards in -direction of arrow-.
  Note
t  There should be no palpable or visible „play“ during both tests.
t  Observe swivel joint while performing tests.
t  Take into account possible existing wheel bearing play or „play“ in upper suspension strut mounting.
t  Check rubber boot for damage and renew swivel joint if necessary.
  N40-0552
