Golf Mk5

Tyre monitor display
Tyre monitor display
General notes:
The tyre pressure monitor system is part of the software in the ABS control unit -J104-. The system is used to detect slow tyre pressure loss from a wheel. Event memory entries for the tyre monitor display are stored in the ABS control unit -J104-. The tyre pressure display compares the wheel speeds and consequently the rolling circumference of the individual wheels via the ABS sensors.
After the following work or modifications, the tyre pressure monitor display button -E492- must be pressed and held until a confirmation is sounded.
t  Change in tyre pressure
t  Changing one or more wheels
t  Interchanging wheels, e.g. from front to rear
A change in the wheel's rolling circumference will be indicated by the TPM warning lamp -K220- lighting up in the instrument cluster. A tyre's rolling circumference may change as a result of:
t  Insufficient tyre inflation pressure.
t  Structural tyre damage.
t  One-sided loading of vehicle
t  Increased load on one axle, e.g. due to towing a trailer
t  Use of snow chains.
t  Spare wheel installed.
t  Wheel renewal.
System fault in the ABS system

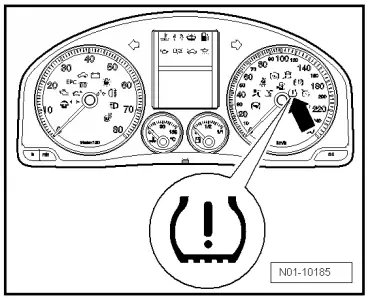

If a fault in the ABS is displayed by the ESP and TCS warning lamp -K155- or the traction control system warning lamp -K86-, then the tyre pressure monitor warning lamp -K220--arrow- will also light up. However, no fault will be stored in the system for the tyre monitor display.
The warning lamp cannot be extinguished by pressing the TPM button -E492-. In this case, please carry out the following steps:
–  Connect → Vehicle diagnostic tester and select „Guided Fault Finding“.
Running gear
Brake system
Anti-lock brake system ABS/TCS Mark 70 or anti-lock brake system ABS/EDL/TCS/ESP Mark 60 EC
Functions
Tyre pressure monitor display / Tyre pressure warning
Follow instructions on screen to perform basic setting.
Perform basic setting
  N01-10185
Following any change to the wheels, with the ignition switched on and the vehicle stationary, press the SET button -2- until an audible signal sounds. The audible signal confirms basic setting.
  N01-10229
