Rear bumper cover > < Assembly overview - North America

Golf Mk6

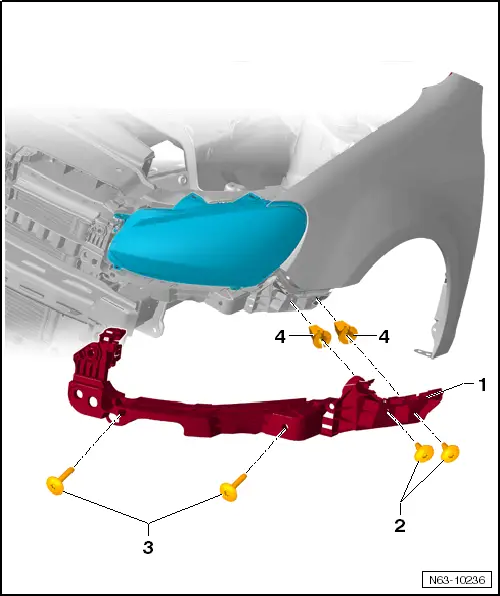

Assembly overview - side guide

Assembly overview - side guide
  Note
Only the left side is shown. The right side is similar.
1 - Lateral guide
q   Left and right.
2 - Bolt
q   Qty. 2.
q   Specified torque: 2 Nm
3 - Bolt
q   Qty. 2.
q   Specified torque: 5 Nm
4 - Expanding nut
q   Qty. 2.



Rear bumper cover > < Assembly overview - North America
