Removing and installing window slot inner seal

Removing and installing window slot inner seal
Removing
–  Remove rear door trim → General body repairs, interior; Rep. gr.70.

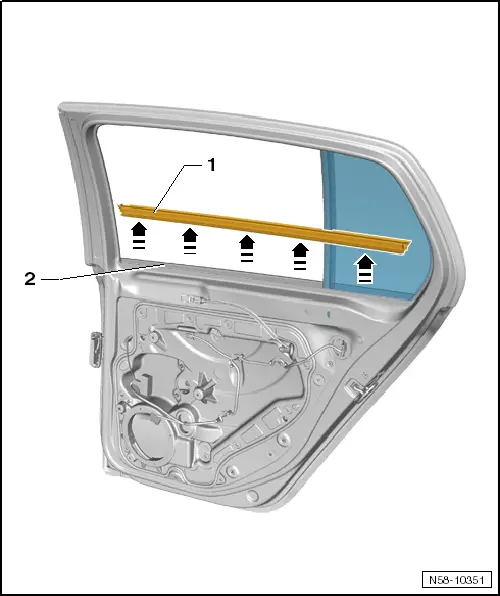

–  Pull seal -2- equally all around -arrows- off flange -2-.
Installing
Push seal -1- equally by hand onto flange -2-.
