Golf Mk6

Removing sliding/tilting sunroof glass panel
Removing sliding/tilting sunroof glass panel
–  Remove boot → Chapter.

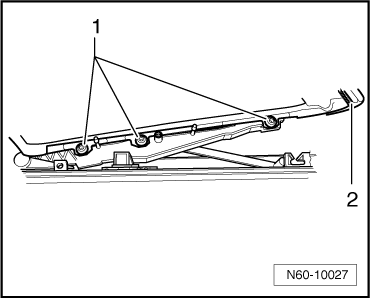

–  Remove bolts -1- on left and right.
–  Remove sliding/tilting sunroof glass panel -2- out upwards.
  WARNING
The guide plate must not moved to „Open“ position when removed, because the water channel will not be compressed by the glass panel and can become wedged together in the roof.
  N60-10027
