Golf Mk6

Removing
Removing
–  Remove front seat → Chapter
–  Remove front belt buckle:
t  2-door model → Chapter
t  4-door model → Chapter

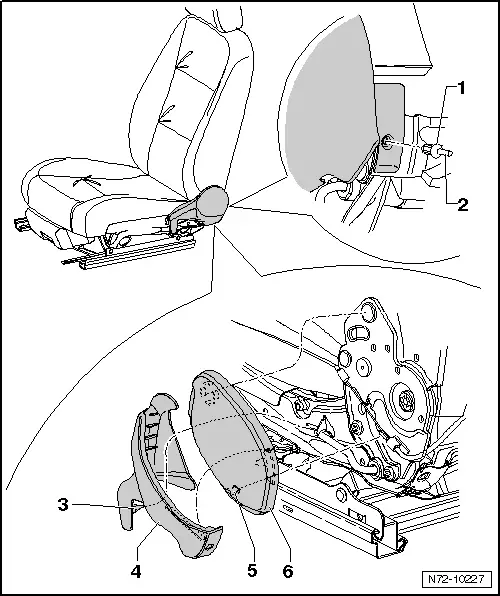

–  Press clamping pin -2- inwards and remove retaining clip -1-.
–  Release locking hooks -3- and release trim -4- from seat.
–  Release locking hooks -5- and release trim -6- from seat.
