Golf Mk6

Removing and installing slider (2 door models)
Removing and installing slider (2 door models)
Removing
–  Disengage seat longitudinal adjustment.
–  Push front seat backwards onto stop in rearmost position.
–  Disengage front seat with handle for easy entry.
–  Fold backrest forwards and, at the same time, push seat to foremost position.
–  Unscrew rear bolt from seat on tunnel side.

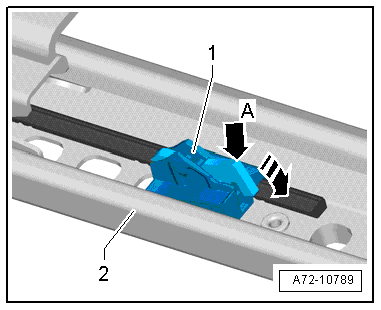

–  Push rocker -arrow A- off slider in -direction of arrow- and disengage it.
–  Pull slider -1- backwards out of seat rail -2- by tilting slightly in direction of tunnel.
  A72-10789
Installing

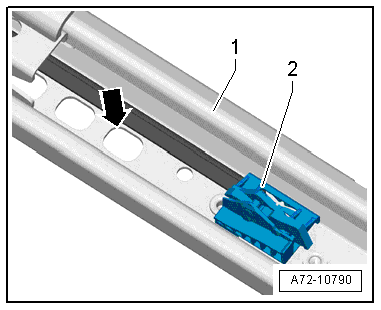

–  Insert slider in seat rail -1- by tilting slightly in direction of tunnel.
–  Engage slider in rearmost detent hole -arrow-.
–  Tighten rear bolt from seat on tunnel side (40 Nm)
–  Fold back backrest and, when doing this, slide seat backwards into rearmost position (easy entry system).
–  Disengage seat longitudinal adjustment and move front seat into desired seating position.
  Note
Special adjustment of the slider is not necessary.
  A72-10790
