| General notes on anti-lock brake system |
| Following versions may be installed in this vehicle: |
| t

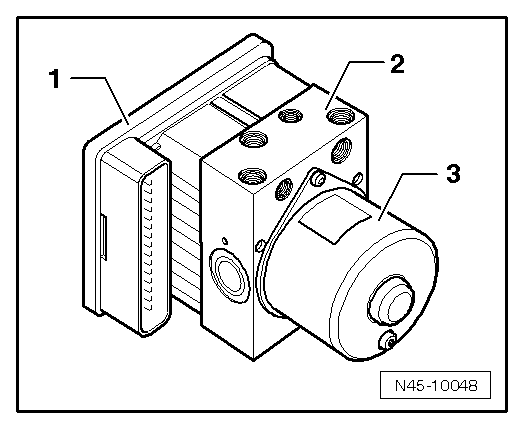

| ABS Mark 60 EC with integrated sensor unit for ESP |
| The ABS brake system is divided diagonally. The servo-assistance is effected pneumatically by the vacuum brake servo unit. |
| Vehicles with ABS are not fitted with a mechanical brake pressure regulator. Specially matched software in the control unit regulates the brake force distribution on the rear axle. |
| Faults in the ABS do not influence the brake system and servo assistance. The conventional brake system remains functional even without ABS. A change in braking behaviour is to be reckoned with. After the ABS warning lamp comes on, the rear wheels may lock prematurely during braking. |
|
|
|
