Golf Mk6

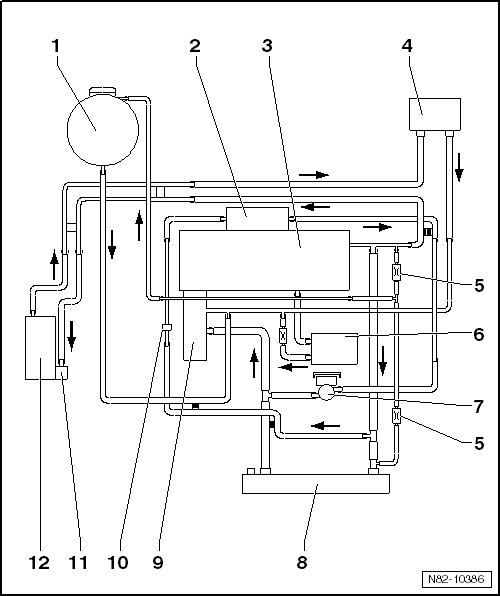

| Connection diagram for coolant hoses in vehicles with auxiliary heating, engine codes CBAA, CBBB, CBAB, CBDC, CJAA |
| 1 - | Coolant expansion tank |
| 2 - | Exhaust gas recirculation (water cooled) |
| 3 - | Cylinder head and cylinder block |
| 4 - | Heat exchanger for heater |
| 5 - | Restrictor |
| 6 - | Engine oil cooler |
| 7 - | Continued coolant circulation pump -V51- |
| 8 - | Radiator |
| 9 - | Coolant pump |
| 10 - | Temperature sensor |
| 11 - | Circulation pump -V55- |
| q | Removing and installing → Chapter |
| 12 - | Auxiliary heater Thermo Top V |
| q | Removing and installing → Chapter |
