Removing sunlight penetration photosensorG107 or sunlight penetration photosensor 2G134
Removing sunlight penetration photosensor -G107- or sunlight penetration photosensor 2 -G134-
Special tools and workshop equipment required

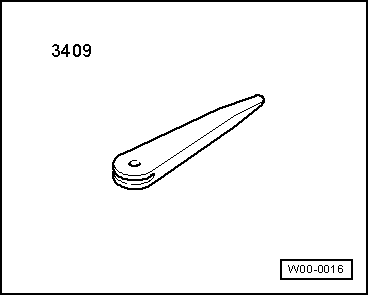

t  Removal wedge -3409-
  W00-0016

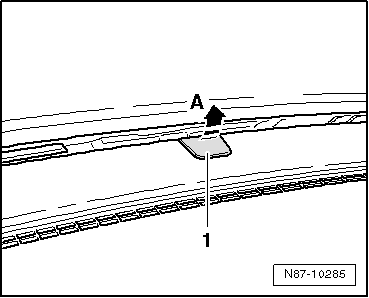

–  Unclip sunlight penetration photosensor -1- in direction of arrow from dash panel.
–  Pull connector off.
  N87-10285
