Golf Mk6

Removing ventilation
Removing ventilation
Special tools and workshop equipment required

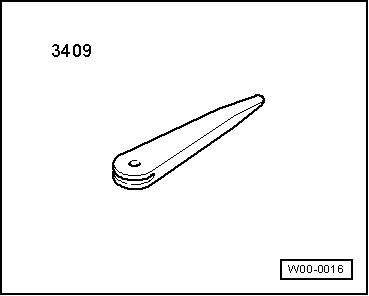

t  Removal wedge -3409-
–  Remove rear bumper → General body repairs, exterior; Rep. gr.63.
  W00-0016

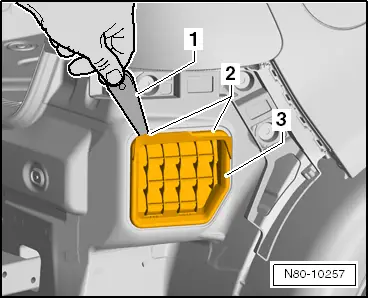

–  Release locking lugs -2- using wedge -3409--1- and remove ventilation frame -3- from side panel
  N80-10257
