Installing > < Removing driver or front passenger vent

Golf Mk6

Removing

Removing
–  Remove side dash panel cover → General body repairs, interior; Rep. gr.68.

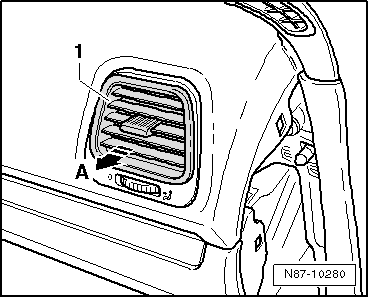

–  Reach into dash panel from the side and unclip vent -1- from dash panel in direction of -arrow A-.
  N87-10280
