Golf Mk6

Removing and installing rear footwell air duct
Removing and installing rear footwell air duct
  Note
The procedure for removal of footwell air ducts is identical on both sides.
–  Remove front passenger or driver seat → General body repairs, interior; Rep. gr.72.

–  Remove centre console → General body repairs, interior; Rep. gr.68.

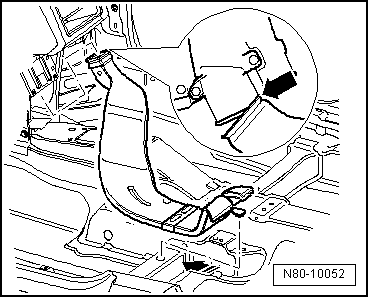

–  Raise floor covering, unclip rear footwell air duct from underbody and pull off heater unit.
  N80-10052
