Installing > < Renewing seals for right flange shaft or stub shaft - front-wheel drive

Golf Mk6

Removing
Removing
–  Remove right wheel.
–  If necessary, remove noise insulation → General body repairs, exterior; Rep. gr.50.
–  Remove right drive shaft → Running gear, axles, steering; Rep. gr.40.
–  Place drip tray under gearbox.
Vehicles without intermediate shaft

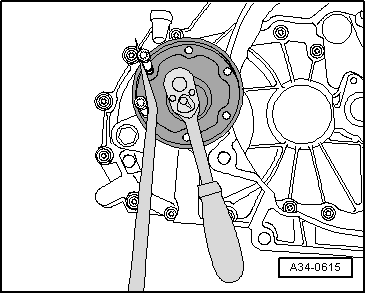

–  Remove bolt for right flange shaft by screwing 2 bolts into flange and counterholding flange shaft with a lever.
–  Remove flange shaft along with spring, thrust washer and tapered ring.
Vehicles with intermediate shaft
  A34-0615

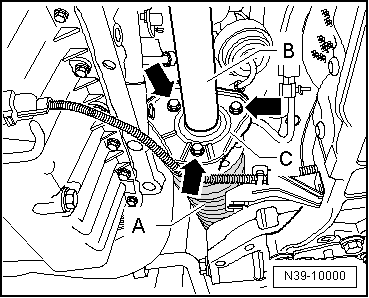

–  After removing right drive shaft -A-, unbolt intermediate shaft -B- from bearing bracket -C--arrows- and pull out stub shaft of gearbox.
  N39-10000

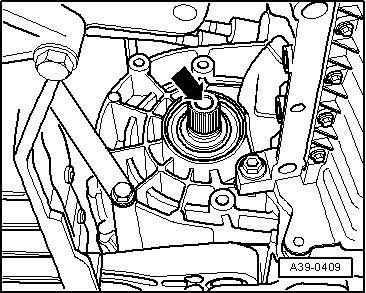

–  Remove stub shaft securing bolt -arrow-.
–  Pull out stub shaft together with compression spring.
Continuation for all vehicles
–  Pry seal out using assembly lever.
  A39-0409
