Golf Mk6

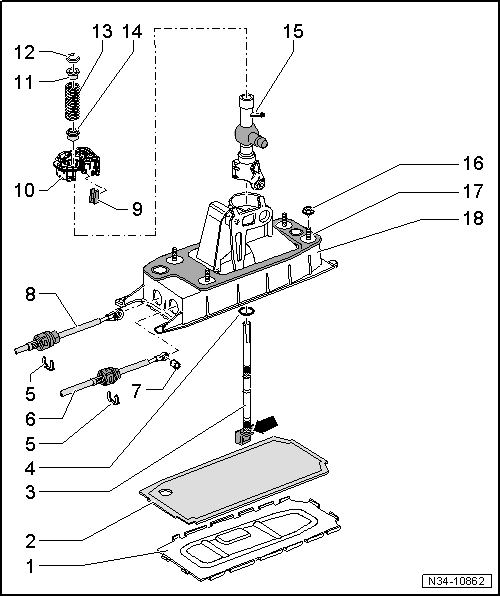

| Repairing gear lever and selector housing (from 11.06) |
Note| t | Lubricate bearing positions and sliding surfaces. |
| t | Allocate grease using → Electronic parts catalogue (ETKA). |
| t | Dismantling and assembling selector mechanism → Chapter. |
| 1 - | Base plate |
| q | Bend open tabs to remove |
| q | Always renew |
| 2 - | Seal |
| q | Always renew |
| 3 - | Selector lever |
| q | Can be removed and installed with gear lever guide → Item installed |
| 4 - | Damping washer |
| q | Push onto gear lever up to stop -arrow- |
| 5 - | Circlip |
| q | Do not damage cables when removing |
| q | Always renew |
| 6 - | Gate selector cable |
| q | Lever off gate selector lever |
| q | Press onto gate selector lever inside selector mechanism |
| q | Installation position → Chapter |
| 7 - | Bush |
| 8 - | Gear selector cable |
| q | Lever off gear lever guide |
| q | Press onto gear lever guide inside selector mechanism |
| q | Installation position → Chapter |
| 9 - | Damping |
| 10 - | Ball socket |
| q | Will be damaged when removed |
| q | Always renew |
| 11 - | Bush |
| 12 - | Circlip |

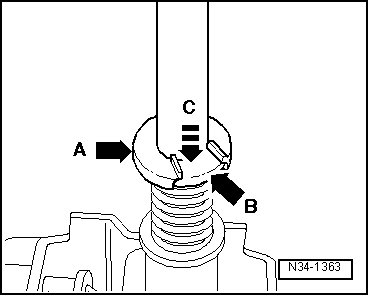

| q | Removing and installing → Fig. |
| 13 - | Compression spring |
| 14 - | Bush |
| 15 - | Gear lever guide |
| 16 - | Hexagon nut M8, 25 Nm, hexagon nut M 6, 8 Nm |
| q | Qty. 4 |
| 17 - | Seal |
| q | Between selector housing and underbody |
| q | Self-adhesive |
| q | Bond to selector housing |
| 18 - | Selector lever housing |
| q | With compression spring and gate selector lever |
| q | Compression spring and gate selector lever cannot be removed |
