Golf Mk6

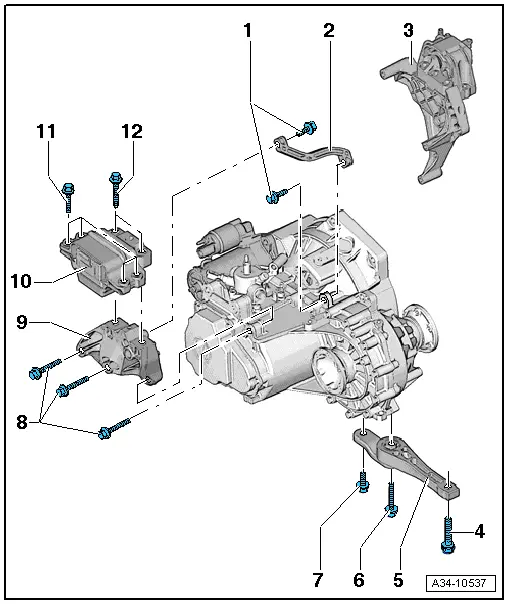

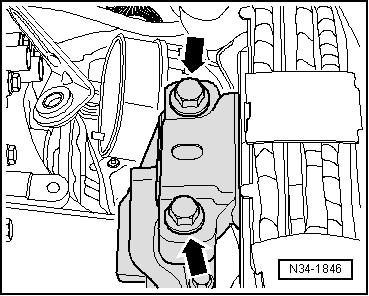

| Assembly overview - assembly mountings |
| 1 - | Bolt |
| q | 20 Nm + 90° |
| q | Gearbox support to gearbox and gearbox bracket |
| q | Tightening sequence → Fig.. |
| q | Always renew |
| 2 - | Rear final drive support |
| q | To gearbox bracket and gearbox |
| 3 - | Engine mounting with engine support |
| q | → Rep. gr.10 |
| 4 - | Bolt |
| q | Pendulum support to subframe |
| q | → Rep. gr.40 |
| 5 - | Pendulum support |
| q | → Rep. gr.40 |
| 6 - | Bolt |
| q | Pendulum support to gearbox |
| q | → Rep. gr.40 |
| 7 - | Bolt |
| q | Pendulum support to gearbox |
| q | → Rep. gr.40 |
| 8 - | Bolt |
| q | 40 Nm + 90° |
| q | Gearbox bracket to gearbox |
| q | Always renew |
| 9 - | Gearbox bracket |
| 10 - | Gearbox mounting |
| q | Check adjustment → Rep. gr.10. |
| q | Adjusting → Rep. gr.10 |
| 11 - | Bolt |
| q | Gearbox mounting to body |
| q | → Rep. gr.10 |
| 12 - | Bolt |
| q | 60 Nm + 90° |
| q | Gearbox mounting to gearbox bracket |
| q | Always renew |
|
|
|
|
