Engine number, engine data
Engine number, engine data

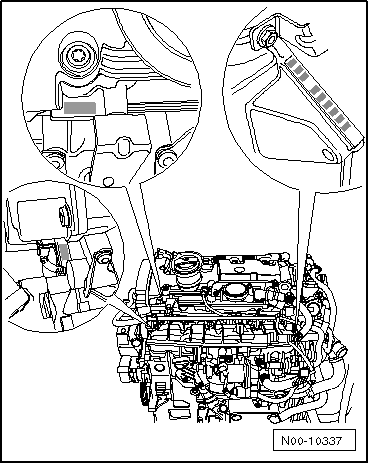

Engine number
The engine number („code letters“ and „serial number“) can be found on the left on the joint between engine and gearbox.
The engine code is also stamped on the right side of the cylinder head and on the cylinder block.
In addition, there is a sticker on the toothed belt guard with „engine code“ and „serial number“.
The first 3 digits denote the mechanical design of the engine and are stamped on the engine. The fourth digit indicates the output and the torque of the engine. It depends on the engine control unit. The four digit engine code can be found on the data plate and on the vehicle data sticker. It can also be read from the engine control unit.
  Note
Fitting locations of vehicle data sticker → Booklet.
Engine data
Edition 05.2011 Version 1.0
  N00-10337
Engine codeCDLG
Manufactured05.2011 ►
Emissions fulfilEU 5
Capacitycm31984
OutputkW at rpm173/6000
TorqueNm at rpm300/2400…5200
BoreØ mm82.5
Strokemm92.8
Compression ratio9.8
Valves per cylinder4
RON 98 unleaded1)
Injection, ignitionMotronic MED 9.1
 Idling speed2)rpm660…860
 Governed speedrpmapprox. 6800
Knock control2 sensors
Lambda control2 probes
Catalytic converteryes
Camshaft timing controlyes
Electronic power controlyes

1) Also 95 RON, though with reduced power
2) If voltage supply to engine control unit drops below 12 volt, idling speed will be raised incrementally up to 990 rpm. The idling speed cannot be adjusted.
