Golf Mk6

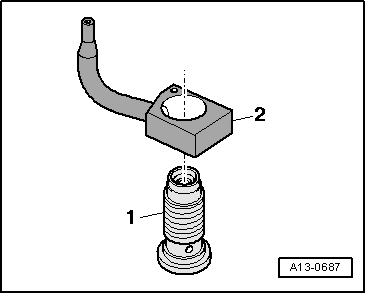

| Assembly overview - sump / oil pump |
| 1 - | Oil level and oil temperature sender -G266- |
| q | Removing and installing → Chapter |
| 2 - | O-ring |
| q | Renew. |
| 3 - | Oil drain plug |
| q | 30 Nm |
| 4 - | Seal |
| q | Renew. |
| 5 - | Bolt |
| q | Specified torque and tightening sequence → Fig. „„Oil sump - specified torques and installation sequence““. |
| 6 - | Oil sump |
| q | Clean sealing surface before fitting. |
| q | Install with sealant according to → Electronic parts catalogue (ETKA). |
| q | Removing and installing → Chapter „Removing and installing oil sump“ |
| 7 - | Bolt |
| q | 16 Nm |
| 8 - | Oil pump |
| q | With 12 bar pressure relief valve. |
| q | Before installing, check that both dowel sleeves for centring oil pump on cylinder block are fitted. |
Note| t | If toothed belt or oil pump have to be removed. |
| t | Check oil pump for free movement. |
| t | It should be possible to turn belt pulley easily with 1 finger. |
| t | Replace if binds. |
| q | Removing and installing → Chapter |
| 9 - | Toothed belt |
| q | Check for damage and wear. |
| q | Replace if necessary. |
Note| t | Belts with longer life can sag. |
| t | This is not a fault and does not necessarily mean belt needs replacing. |
| 10 - | Dowel sleeves |
| 11 - | Cylinder block |
| 12 - | O-ring |
| q | Renew. |
| 13 - | Bolt |
| q | 9 Nm |
| 14 - | Clip |
| 15 - | Dipstick guide tube |
| 16 - | Bolt |
| q | 9 Nm |
| 17 - | Oil suction pipe |
| 18 - | Baffle plate |
| 19 - | Bolt |
| q | 16 Nm |
| 20 - | Bolt |
| q | Self-locking. |
| q | Renew. |
| q | 9 Nm |
Note
|
|
| Stage | Bolts | Specified torque |
| 1. | -1 … 20- | in diagonal sequence, 5 Nm |
| 2. | -arrows- | 40 Nm |
| 3. | -1 … 20- | in diagonal sequence and in stages; final torque 13 Nm |
Note
|
|
