Removing and installing charge air pipe »hot« side > < Hose connections with grooved unions

Golf Mk6

Hose connections with push-on connectors
Hose connections with push-on connectors
  Caution
The seal in the plug-in connector can be damaged if the securing clip is in the locked position when fitting the connector. This can cause leakage. Observe installation instructions.
Removing

–  Release push-on connector by pulling securing clip -1-. Pull hose/pipe-2- off without the use of tools.
Installing
–  If renewed, place oil seal in groove of charge air hose. Ensure the seal is correctly seated in the groove.
–  Lubricate sealing surface and seal with oil.

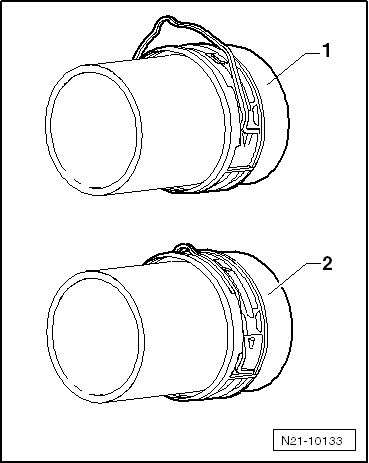

–  Bring retaining clip to release position -1-.
–  Push charge air hose into coupling to stop.
  N50-10000
–  Bring securing clip to locking position -2- and then push charge air hose again.
–  Check if connector coupling seats correctly and is properly engaged by pulling hose.
  N21-10133
