| Checking engine oil level |
Note | t
| The oil level may be in area -d- due to the infiltration of fuel in the engine oil as a result of unfavourable driving conditions after filling. This is a perfectly normal and self-regulating characteristic. It is not necessary to adjust the engine oil level. |
| t
| The oil level must not be above the max. mark - danger of damage to catalytic converter! Markings → Chapter. |

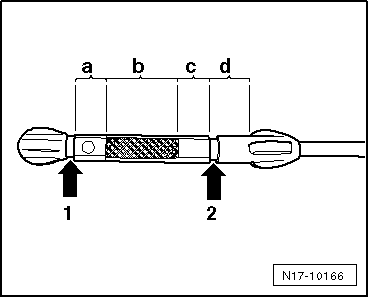

| a - | Oil level in min. mark area: replenish engine oil! |
| b - | Oil level in middle range: can be topped-up with engine oil. |
| c - | Oil level in max. mark area: Do not replenish engine oil! |
| d - | The oil level may be in this area as a result of particular driving conditions. |
|
|
|
