Removing and installing air filter housing
Removing and installing air filter housing
Removing

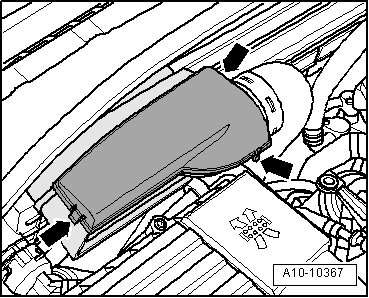

–  Open intake system cover by carefully releasing fasteners -arrows-.
  A10-10367

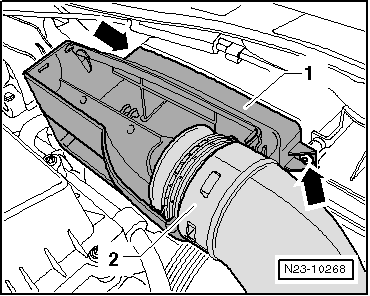

–  Remove securing bolts -arrows- for intake system -1- and take connecting hose -2- out of guide.
  N23-10268

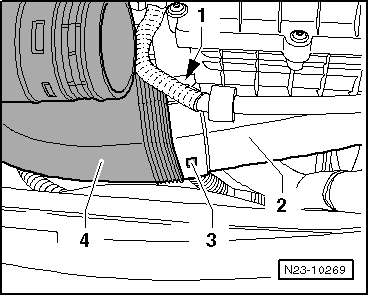

–  Press locking lugs -1- and -3- in and pull connecting hose -4- off air filter housing -2-.
–  Disconnect connector from air mass meter -G70--1- and pull off vacuum line -2-.
  N23-10269

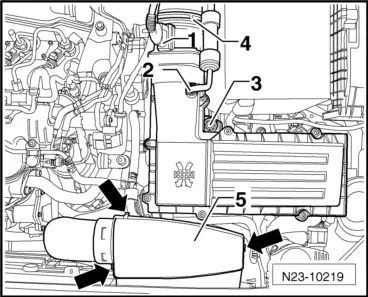

–  Loosen threaded connection on air filter housing -3-.
  N23-10219
–  Open clamp -4- and pull off hose to turbocharger.
–  Remove entire air filter housing.
Installing
Install in reverse order.
