Golf Mk6

Removing and installing engine speed sender
Removing and installing engine speed sender
Removing
–  Remove noise insulation. → General body repairs, exterior; Rep. gr.66.

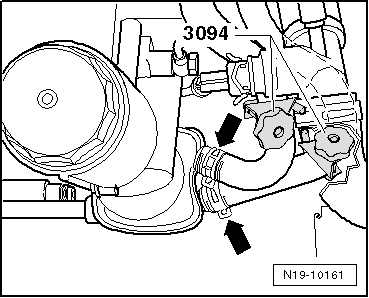

–  Clamp off coolant hoses from oil cooler with hose clips up to Ø 25 mm -3094-.
–  Loosen spring-type clips -arrows- using spring-type clip pliers -VAS 6362-.
  Note
Collect escaping coolant with drip tray -VAS 6208-.
–  Pull coolant hoses off oil cooler.
–  Remove oil filter bracket → Chapter.
  N19-10161

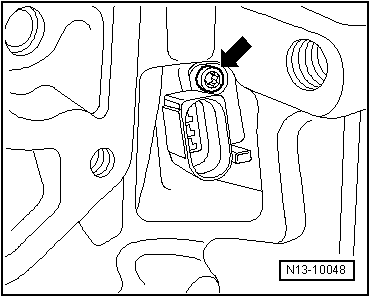

–  Loosen securing bolt -arrow- (4 mm socket -T10370-) and pull out speed sender.
Installing
Installation is carried out in the reverse order. When installing, note the following:
l  Specified torque for engine speed sender -G28- → Item
l  Specified torques for oil filter bracket → Chapter.
–  Check coolant level, replenish coolant if necessary → Chapter.
  N13-10048
