Golf Mk6

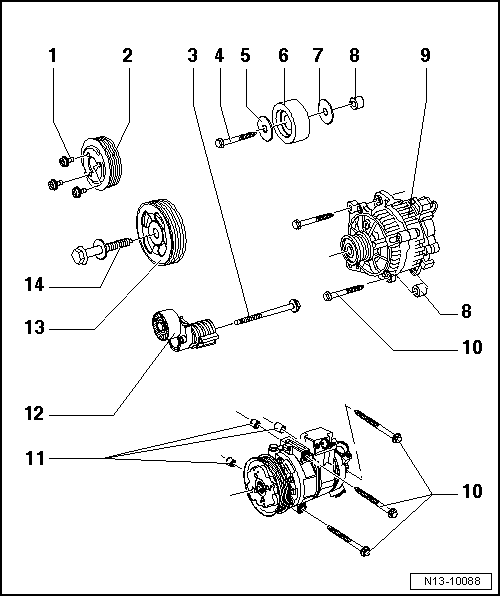

| Assembly overview - part I, belt drive |
| 1 - | 20 Nm |
| 2 - | Belt pulley |
| q | For coolant pump. |
| q | Use water pump wrench -V.A.G 1590- to loosen and tighten. |
| 3 - | 40 Nm + 1/4 turn (90°) further |
| q | Renew. |
| q | Removing and installing with vehicle raised. |
| 4 - | 40 Nm |
| 5 - | Washer |
| 6 - | Idler roller |
| 7 - | Washer |
| 8 - | Spacer sleeve |
| 9 - | Alternator |
| 10 - | 25 Nm |
| 11 - | Centring sleeve |
| 12 - | Tensioning element |
| 13 - | Belt pulley |
| q | For crankshaft. |
| q | Contact surfaces must be free of oil and grease. |
| 14 - | 150 Nm + 1/2 turn (180°) further |
| q | Observe tightening procedure → Chapter. |
| q | Renew. |
| q | Contact surface for securing bolt must be free of oil and grease. |
| q | Oil threads before inserting. |
| q | Secure belt pulley against turning with counterhold -3415-. |
| q | Turning further can be done in several stages. |
| q | The turning further angle can be measured with a commercial protractor. |
