Removing and installing ancillary bracket
Removing and installing ancillary bracket
Special tools and workshop equipment required
t

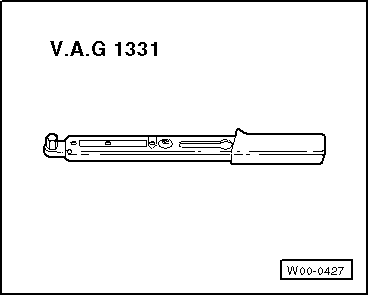

Torque wrench (5…50 Nm) -V.A.G 1331-
Removing
–
Install noise insulation or underride guard
→ General body repairs, exterior; Rep. gr.50
.
–
Remove poly V-belt
→ Chapter
.
–
Remove alternator
→ Electrical system; Rep. gr.27
.
–
Remove air conditioner compressor
→ Heating, air conditioning; Rep. gr.87
Note
The air conditioning system lines must not be opened.
–
Secure air conditioner compressor to lock carrier.
–
Ensure that lines are not kinked.
–

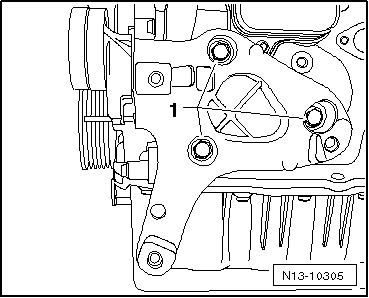

Unscrew securing bolts
-1-
and remove bracket.
Installing
–
Fit ancillary bracket to cylinder block.
–
Tighten securing bolts
-1-
to 25 Nm.
Specified torque for tensioning element
→ Item
Further assembly is basically the reverse of the dismantling sequence.
