Golf Mk6

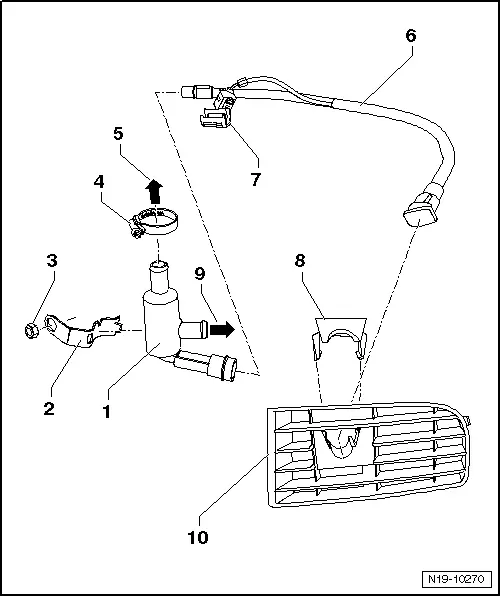

| Assembly overview - engine preheating (engine codes CCSA, CMXA) |
| 1 - | Engine preheater |
| 2 - | Bracket |
| 3 - | Nut |
| q | 40 Nm |
| 4 - | Clamp |
| 5 - | To coolant pipe → Item |
| 6 - | 220V - Connecting cable |
| 7 - | Locking device |
| 8 - | Bracket |
| 9 - | To coolant hose at top of radiator → Item |
| 10 - | Left air intake grille |
|
|
