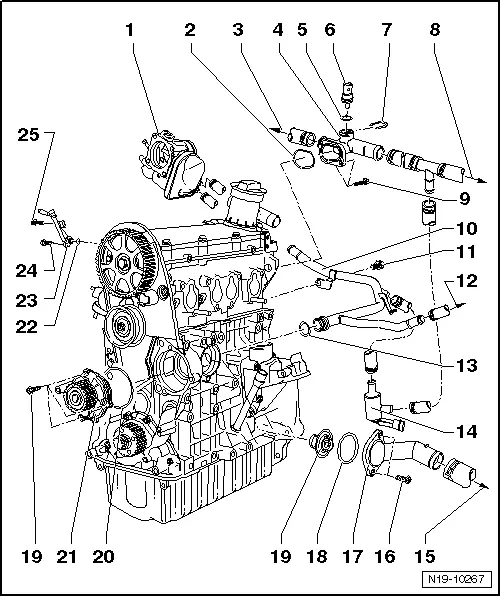

Assembly overview - parts of cooling system, engine side, engine codes CCSA, CMXA |
1 - | Throttle valve module -J338- |
q | Heated by coolant |
q | If renewed, adapt engine control unit to throttle valve module → vehicle diagnosis tester, “Guided function”. |
2 - | Seal |
q | Renew |
3 - | To heat exchanger (for heating system) |
4 - | Coolant distributor housing |
5 - | O-ring |
q | Renew |
6 - | Coolant temperature sender -G62- |
7 - | Securing clip |
8 - | To top of radiator |
9 - | 10 Nm |
10 - | Coolant pipe |
11 - | 40 Nm |
12 - | Hose to expansion tank |
13 - | O-ring |
q | Renew |
14 - | Engine preheating |
q | Assembly overview → Chapter. |
15 - | Hose to bottom of radiator |
16 - | 15 Nm |
17 - | Connection |
18 - | O-ring |
q | Renew |
19 - | Thermostat |
q | Removing and installing → Chapter |
q | Checking: heat thermostat in water. |
q | Opening begins at approx. 87 °C. |
q | Fully open: at approx. 102 °C. |
q | Opening stroke: min. 7 mm. |
20 - | O-ring |
q | Renew |
21 - | Coolant pump |
22 - | O-ring |
q | Renew |
23 - | Breather pipe |
24 - | 10 Nm |
25 - | 10 Nm |
