Golf Mk6

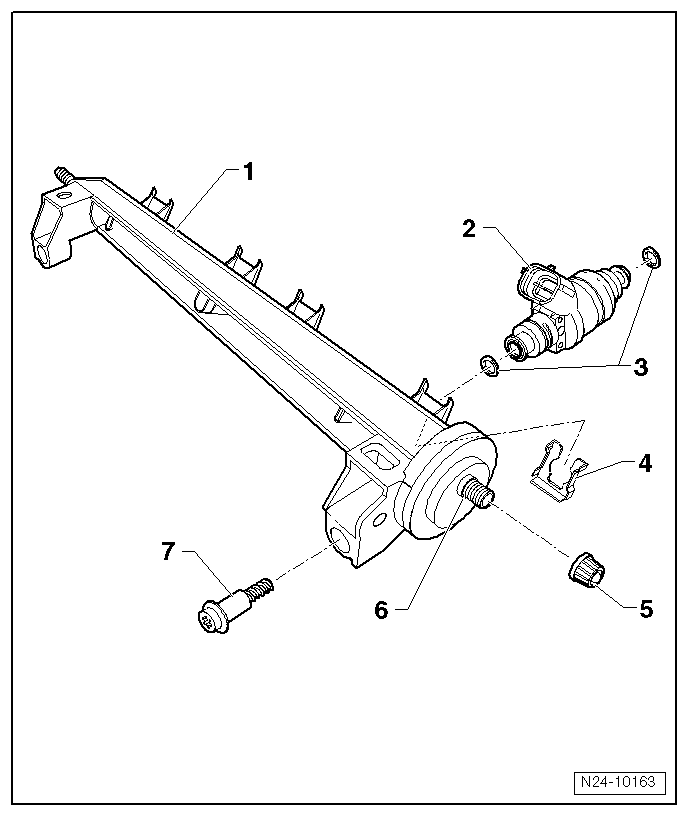

| Assembly overview - fuel rail with injectors |
| 1 - | Fuel rail |
| 2 - | Injector, cylinder 1 -N30- through injector, cylinder 4 -N33- |
| q | Removing and installing → Chapter. |
| q | When replacing, erase learnt values in engine control unit → vehicle diagnosis tester “Guided fault finding”. |
| 3 - | O-ring |
| q | Renew |
| q | Lubricate with clean engine oil. |
| 4 - | Securing clip |
| q | Ensure correct seating on injector and fuel rail. |
| 5 - | Dust cap |
| 6 - | Breather valve |
| 7 - | 8 Nm |
