Golf Mk6

Engine oil
Engine oil
Oil capacities:
With oil filter 4.7 l
Without oil filter 4.2 l
Engine oil specifications → Booklet.
Change engine oil → Booklet.
Checking oil level:
  Note
The oil level must not be above max. mark on dipstick - danger of damage to catalytic converter!
Test prerequisites
l  Engine oil temperature at least 60 °C.
l  Vehicle must be level (horizontal).
l  Wait a few minutes after switching engine off to allow oil to flow back into sump.
Test procedure
–  Pull out dipstick, wipe off with a clean cloth and insert it again to stop.
–  Pull out dipstick again and read oil level.

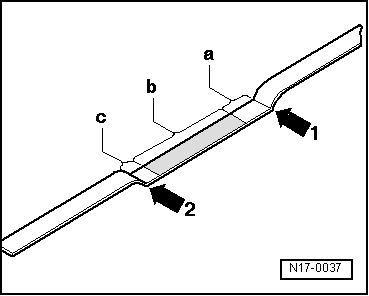

Markings on dipstick:
a - Oil is not to be topped up.
b - Oil can be topped up.
c - Oil must be topped up.
  Note
The oil level must not be above the max. marking -arrow  1- and not below the min. marking -arrow 2-.
  N17-0037
