Removing and installing fuel gauge senderG
Removing and installing fuel gauge sender -G-
Removing:
–  Remove fuel delivery unit → Chapter.

–  Pull fuel gauge sender -G- slightly to side and upwards at the same time

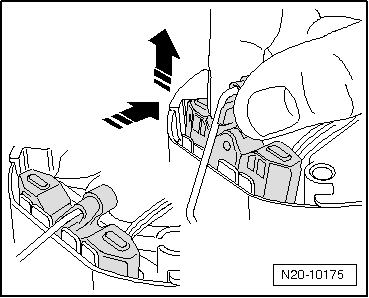

  N20-10175
–  If the sender cannot be released in this way, the retaining tabs -arrows- must also be pushed to the side slightly.
–  Note colour co-ordination of cables for reinstallation.

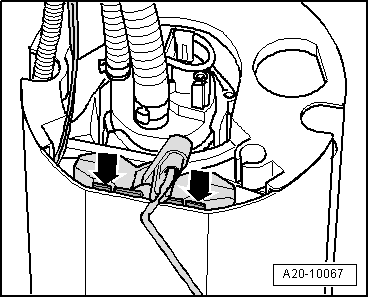

  A20-10067
–  Release electrical connectors -1…3- and pull them off. Then bend back the locking devices of the connector.
Installing:

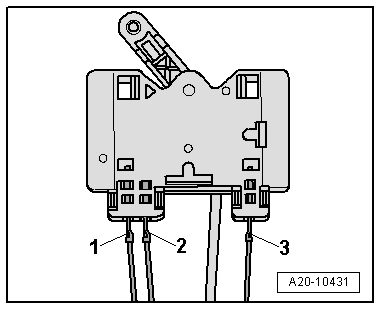

  A20-10431
–  Connect connectors -1…3-. Observe colour co-ordination.
–  Check connectors are secured properly by pulling.
–  Insert fuel gauge sender -G- into guide on fuel delivery unit and press down until it engages.
–  Install fuel delivery unit → Chapter.
  A20-10431
