Golf Mk6

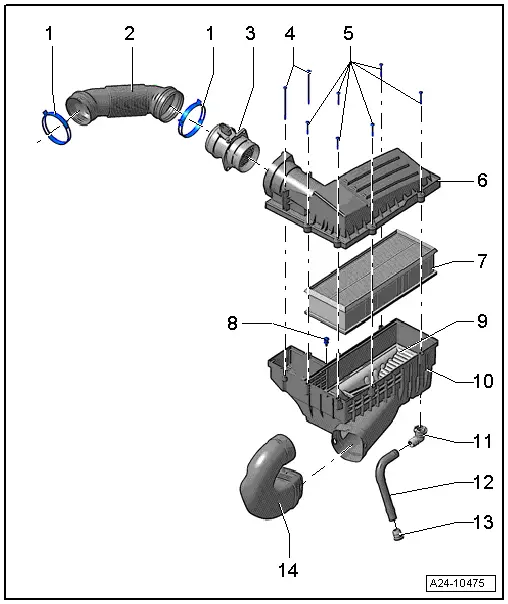

| Assembly overview - air filter |
| 1 - | Spring-type clip |
| 2 - | Air intake hose |
| q | To turbocharger. |
| q | Check air hose for contamination and leaves |
| 3 - | Air mass meter -G70- |
| q | Removing and installing → Chapter |
| 4 - | Bolts |
| q | 1.5 Nm |
| q | For upper part of air filter. |
| 5 - | Bolts |
| q | 1.5 Nm |
| q | For upper part of air filter. |
| 6 - | Air filter upper part |
| q | Clean any salt residue, leaves and dirt from upper part of air filter |
| 7 - | Filter element |
| q | Always use genuine part for air filter element |
| q | Removing and installing → Chapter |
| q | Observe change intervals → Booklet |
| 8 - | Bolt |
| q | 8 Nm |
| q | For air filter lower part |
| 9 - | Snow screen |
| q | Not installed in all vehicles. |
| 10 - | Air filter lower part |
| q | Clean any salt residue, leaves and dirt from lower part of air filter |
| 11 - | Connection for water drain hose |
| q | Clean connection |
| 12 - | Water drain hose |
| q | Clean water drain hose |
| 13 - | Flutter valve |
| 14 - | Intake air duct |
| q | To lock carrier. |
| q | Clean any leaves and dirt out of intake air duct |
