Golf Mk6

Assembly overview: drive shaft with VL107 constant velocity slip joint (push-on)

Assembly overview: drive shaft with VL107 constant velocity slip joint (push-on)
1 - Outer constant velocity joint
q   Renew only as complete unit
q   Removing → Anchor.
q   Installing: drive onto shaft to stop using a plastic mallet
q   Checking → Chapter
2 - Bolt
q   Various versions
q   Allocation → Electronic parts catalogue „ETKA“
  WARNING
t  There are two versions of the twelve-point head bolt, with and without ribs Distinguishing feature → Fig..
t  When installing a twelve-point bolt, always note which version of the twelve-point bolt is installed
t  The respective specified torque must also be used.
t  The specified torque for twelve-point bolts »with« ribbing is 70 Nm + 90° when loosening and tightening → Chapter.
t  The specified torque for twelve-point bolts »without« ribbing is 200 Nm + 180° when loosening and tightening → Chapter.
q   Always renew after removing.
3 - Retaining ring
q   Always renew after removing.
q   Insert in groove in shaft
4 - Thrust washer
q   Installation position → Fig..
5 - Dished spring
q   Installation position → Fig..
6 - Clamp
q   Always renew after removing.
q   Tightening → Fig.
7 - Boot
q   Check for splits and chafing
q   Material: Hytrel (polyester elastomer)
8 - Clamp
q   Always renew after removing.
q   Tightening → Fig.
9 - Drive shaft
10 - Clamp
q   Always renew after removing.
q   Tightening → Fig.
11 - Boot for constant velocity slip joint
q   Material: Hytrel (polyester elastomer)
q   Without breather hole
q   Check for splits and chafing
12 - Retaining ring
q   Always renew after removing.
q   Insert in groove in shaft
13 - Clamp
q   Always renew after removing.
q   Tightening → Fig.
14 - Constant velocity slip joint
q   Renew only as complete unit
q   Removing → Anchor.
q   Installing: drive onto shaft to stop using a plastic mallet

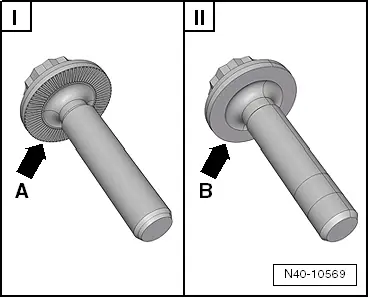

Distinguishing features between twelve-point head bolt with ribbing and twelve-point head bolt without ribbing.
The twelve-point head bolt are only distinguishable on the contact surfaces -arrow A- and -arrow B-.
I - Twelve-point head bolt with ribbing -arrow A-
II - Twelve-point head bolt without ribbing -arrow B-
  N40-10569
