Golf Mk6

Assembly overview: wheel bearing housing, trailing arm (four-wheel drive)

Assembly overview: wheel bearing housing, trailing arm (four-wheel drive)
-Arrow- indicates direction of travel.
1 - Mounting bracket
2 - Cover
3 - Bolt
q   90 Nm + 90° further
q   Always renew after removing.
4 - Coupling rod
q   Connects anti-roll bar to trailing arm and wheel bearing housing
5 - Bolt
q   90 Nm + 45° further
q   Observe tightening sequence → Fig.
q   Always renew after removing.
6 - Trailing arm
q   Removing and installing → Chapter.
q   Repairing → Chapter
7 - Drive shaft
q   Assembly overview → Chapter.
q   Removing and installing → Chapter.
8 - Multi-point socket head bolt
q   70 Nm + 90° further
q   Always renew after removing.
9 - Wheel bearing housing
q   Removing and installing → Chapter.
10 - Rear right speed sensor -G44-/rear left speed sensor -G46-
q   Can be checked in guided fault finding of the vehicle diagnosis, testing and information system -VAS 5051-
q   Before inserting sensor, clean inner surface of hole and coat with lubricating paste -G 000 650-.
11 - Hexagon socket head bolt
q   8 Nm
12 - Bonded rubber bush
q   Renewing → Chapter.
13 - Nut
q   45 Nm
q   Self-locking
q   Always renew after removing.
14 - Bolt
q   50 Nm + 45° further
q   Always renew after removing.
15 - Bolt
q   4 Nm
16 - Brake disc
17 - Bolt
q   Various versions
q   Allocation → Electronic parts catalogue „ETKA“
  WARNING
t  There are two versions of the twelve-point head bolt, with and without ribs Distinguishing feature → Fig..
t  When installing a twelve-point bolt, always note which version of the twelve-point bolt is installed
t  The respective specified torque must also be used.
t  The specified torque for twelve-point bolts »with« ribbing is 70 Nm + 90° when loosening and tightening → Chapter.
t  The specified torque for twelve-point bolts »without« ribbing is 200 Nm + 180° when loosening and tightening → Chapter.
q   Always renew after removing.
18 - Wheel hub with wheel bearing
q   ABS sensor ring is installed in wheel bearing.
q   Removing and installing → Chapter.
The wheel bearing and wheel hub are assembled in one housing.
This wheel bearing/wheel hub unit is maintenance free and has no play. Adjustments and repairs are not possible!
19 - Bolt
q   12 Nm
20 - Splash plate

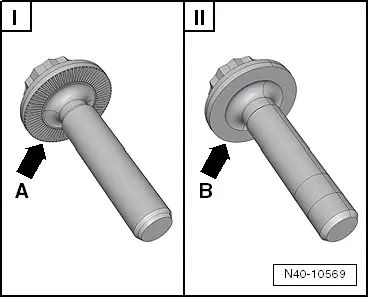

Distinguishing features between twelve-point head bolt with ribbing and twelve-point head bolt without ribbing.
The twelve-point head bolt are only distinguishable on the contact surfaces -arrow A- and -arrow B-.
I - Twelve-point head bolt with ribbing -arrow A-
II - Twelve-point head bolt without ribbing -arrow B-
  N40-10569
