Adjusting toe at rear axle
Adjusting toe at rear axle
Special tools and workshop equipment required

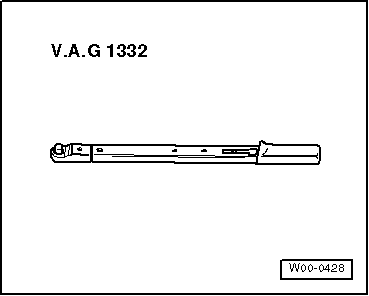

t  Torque wrench -V.A.G 1332-
  W00-0428

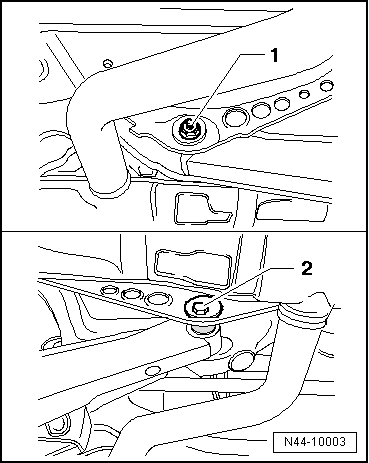

–  Loosen nut -1-.
–  Turn eccentric bolt -2- until specification is attained.
–  Now tighten nut.
  N44-10003
Specified torque
ComponentSpecified torque
Lower transverse link to subframe
t  Use new nut
t  Tighten threaded connections only when vehicle is in the normal running position
95 Nm
