Installing
Installing
Installation is carried out in the reverse sequence of removal.
  Note

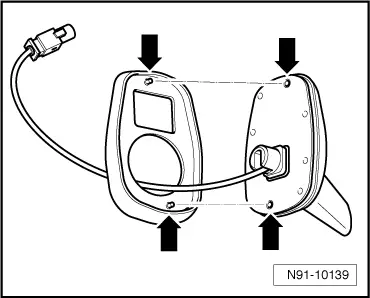

t  When positioning the aerial for installation, ensure that the seal is seated correctly. The two guide lugs of the seal should be located in the appropriate holes -arrows- in the aerial base.
  N91-10139
t  After installing the aerial, ensure that the aerial wiring -2- is routed correctly through the hole -arrow- in the securing nut -1-.
  N91-11168
