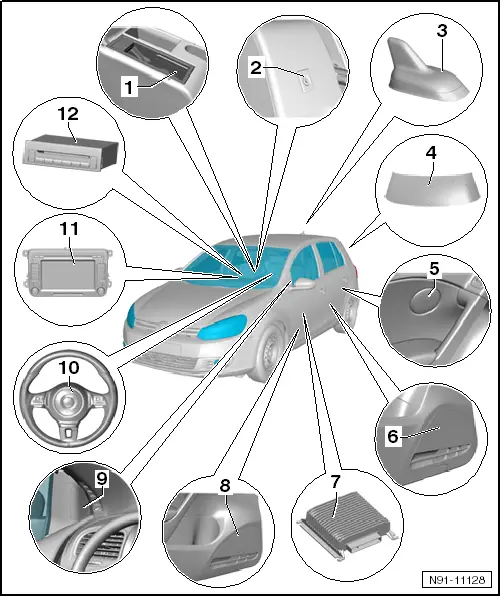

Overview of radio system „RCD 510“, Golf saloon |
1 - | Multimedia system control unit -J650- |
q | Installed in storage compartment of centre armrest |
q | For further information, refer to chapter Multimedia control unit → Chapter. |
q | Optional installation of „CD changer“ or „multimedia control unit“. Both systems cannot be fitted together since the fitting location is the same for both. |
2 - | Connection for external audio sources -R199- |
q | Installed in storage compartment of centre armrest |
q | For further information, refer to chapter Connection for external audio sources -R199- → Chapter. |
3 - | Aerial for telephone, navigation and auxiliary heating remote control -R66- |
q | Installed on rear of roof |
q | Only installed when a telephone or an auxiliary heater is factory fitted in addition to the radio |
q | For further information, refer to chapter Aerial systems → Chapter. |
4 - | Rear window aerial -R130- |
5 - | Rear right treble loudspeaker -R16- and rear left treble loudspeaker -R14- |
q | Installed in rear left and right side panel trims |
q | For further information, refer to chapter Loudspeaker systems → Chapter. |
6 - | Rear right bass loudspeaker -R17- and rear left bass loudspeaker -R15- |
q | Installed in rear left and right side panel trims |
q | For further information, refer to chapter Loudspeaker systems → Chapter. |
7 - | Amplifier -R12- |
q | Installed under left front seat |
q | For more information, see the chapter on amplifier for sound system → Chapter |
8 - | Front right bass loudspeaker -R23- and front left bass loudspeaker -R21- |
q | Installed in left and right doors |
q | Mid-range sounds are handled by the bass and treble loudspeakers. |
q | For further information, refer to chapter Loudspeaker systems → Chapter. |
9 - | Front right treble loudspeaker -R22- and front left treble loudspeaker -R20- |
q | Installed in left and right doors |
q | For further information, refer to chapter Loudspeaker systems → Chapter. |
10 - | Multifunction buttons on left in steering wheel -E440- and multifunction buttons on right in steering wheel -E441- |
q | For further information, refer to chapter Multifunction steering wheel → Chapter. |
11 - | Radio -R- (RCD 510) |
q | Removing and installing → Chapter |
q | Activating/deactivating transport lock for CD changer in „RCD 510“ → Chapter |
q | Overview of connectors → Chapter |
q | Anti-theft coding → Chapter |
12 - | CD changer -R41- |
q | 6-disc CD changer |
q | Installed in storage compartment of centre armrest |
q | For further information, refer to chapter CD changer → Chapter. |
q | Optional installation of „CD changer“ or „multimedia control unit“. Both systems cannot be fitted together since the fitting location is the same for both. |
