Removing and installing tail light (tail light cluster) in side panel > < Tail lights (tail light cluster)

Golf Mk6

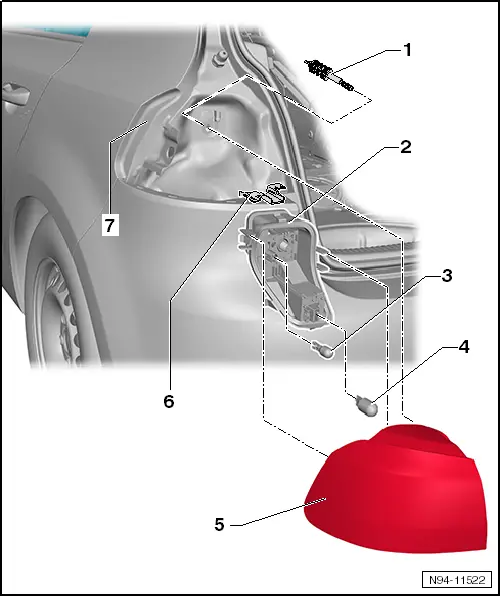

Assembly overview - tail light (tail light cluster) in side panel
Assembly overview - tail light (tail light cluster) in side panel
  Note
The tail light (tail light cluster) in the side panel includes, besides the yellow turn signal bulb -4-, a single-filament bulb -3- which, depending on activation, functions as a brake and tail light.

1 - Securing bolt
q   Specified torque: tighten by hand to stop (max. 2.5 Nm)
2 - Bulb carrier
q   Removing and installing → Chapter
3 - Left brake and tail light bulb -M21- or right brake and tail light bulb -M22-
q   Glass-base bulb 12 V, W 16 W
4 - Rear left turn signal bulb -M6- or rear right turn signal bulb -M8-
q   Glass-base bulb 12 V, WY 21 W
5 - Tail light housing in side panel
q   Removing and installing → Chapter
6 - Lower guide
q   Observe installation notes!
7 - Upper guide
q   Observe installation notes!



Removing and installing tail light (tail light cluster) in side panel > < Tail lights (tail light cluster)
