Removing and installing tail light (tail light cluster) bulb carrier in rear lid

Removing:

–	Switch off ignition and all electrical consumers and remove ignition key.

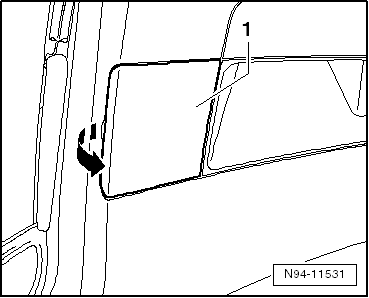

–	Unclip service flap -1- in direction of -arrow- out of trim.

–	Release and disconnect connector -1-.

–	Push fastener -1- in direction of -arrow- and carefully remove bulb carrier -2- backwards out of tail light.

Installing:

Install in the reverse order of removal. When doing this, note the following:

Note

When inserting bulb carrier, ensure that fastener engages audibly.
