Golf Mk6

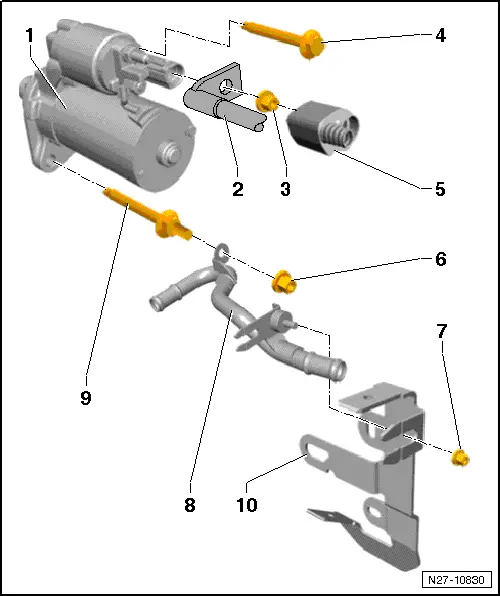

| Assembly overview |
| 1 - | Starter |
| q | Removing and installing → Chapter |
| q | Checking → Chapter |
| 2 - | Battery positive wire connection to starter |
| 3 - | Battery positive wire securing nut to starter |
| q | M8 |
| q | 20 Nm |
| 4 - | Starter securing bolt |
| q | M12 |
| q | 75 Nm |
| 5 - | Protective cap |
| 6 - | Cooling pipe securing nut |
| q | Fit bracket together with cooling pipe on starter securing bolt. |
| q | M8 |
| q | 23 Nm |
| 7 - | Cooling pipe securing nut |
| q | Insert bracket together with cooling pipe in line bracket. |
| q | M6 |
| q | 10 Nm |
| 8 - | Cooling pipe of auxiliary radiator |
| q | Fitted on starter securing bolt -9- and inserted in line bracket -10- |
| 9 - | Starter securing bolt |
| q | M12 |
| q | 75 Nm |
| 10 - | Wiring retainer |
| q | Secured to gearbox housing |
| ohne Abb. - | Air filter housing securing bolt to body |
| q | 10 Nm |
| ohne Abb. - | Cap nut of earth point on front left longitudinal member |
| q | 20 Nm |
