Golf Mk6

Removing and installing joint-free wiper
Removing and installing joint-free wiper
Removing:
  Note
Joint-free wipers are very flexible. To lift the wiper blade off the rear window, grasp it only in the area in which the wiper blade is attached to the wiper.
–  Lift up wiper arm.

–  Tilt wiper blade in direction of -arrow A-.
–  Press unlocking button -2- and pull wiper blade on wiper blade mounting -1- in direction of -arrow B- out of wiper arm.
Installing:
Installation is carried out in reverse order of removal.

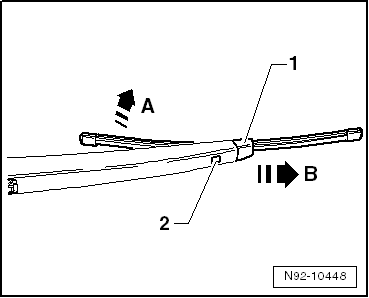

  N92-10448
