Timing Component Alignment Marks: Locations

Make

Volkswagen

Model

Golf

Engine

L4-2.0L (AEG)

Year

1999

Section

Timing Component Alignment Marks › Locations

MaintenanceLocations

Timing Component Alignment Marks: Locations

Caution: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

-

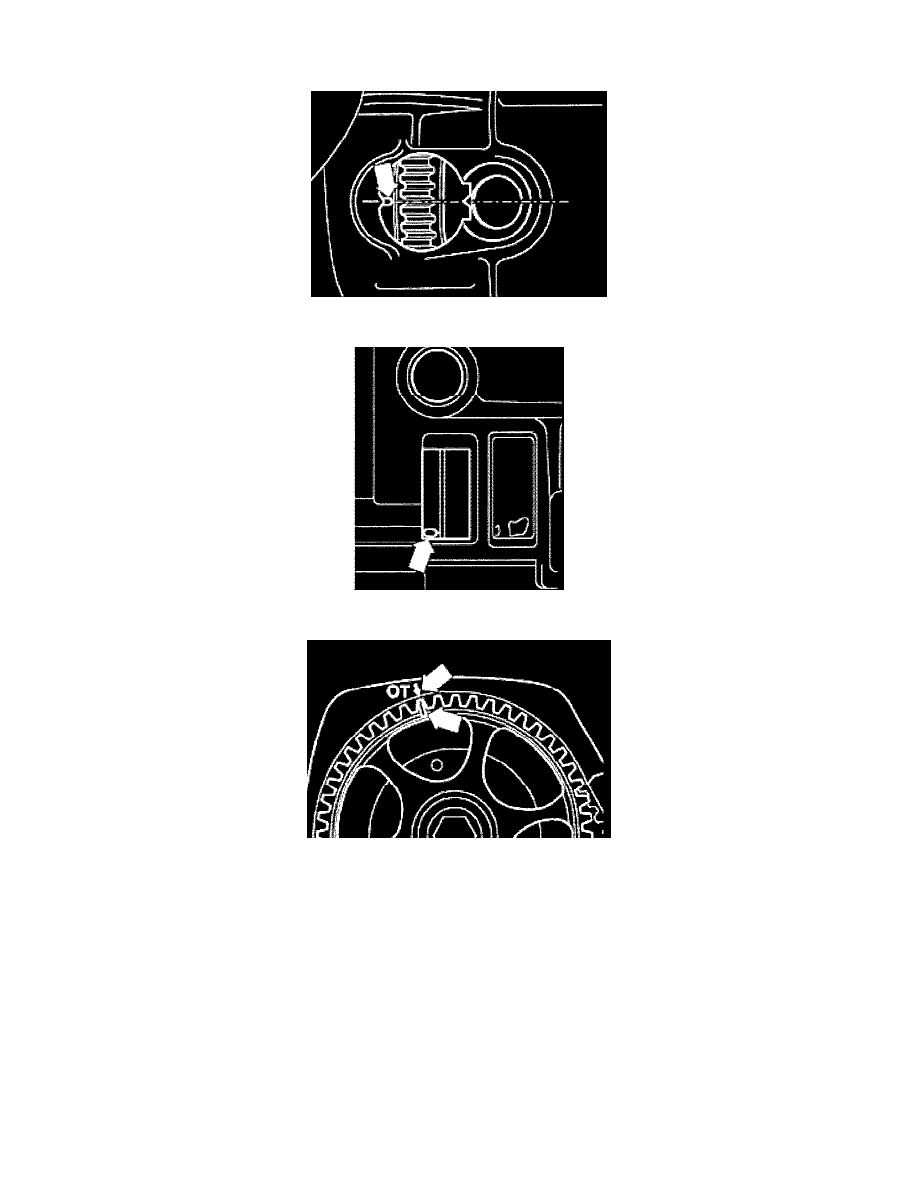

Turn crankshaft to cyl. 1 TDC (arrow) (Engine with manual transmission shown).

-

Turn crankshaft to cyl. 1 TDC (arrow) (Engine with automatic transmission shown).

For complete Timing Belt Removal and Installation information:  See: Timing Belt/Service and Repair
