Golf GL L4-2.0L (AZG) (2001)
/Page-68001.png)
Daytime Running Lamp Relay: Locations
Relay Locations Compiled From Every Wiring Section 1998-2004
RELAY LOCATIONS
Relay Panel & Thirteenfold Auxiliary Relay Panel

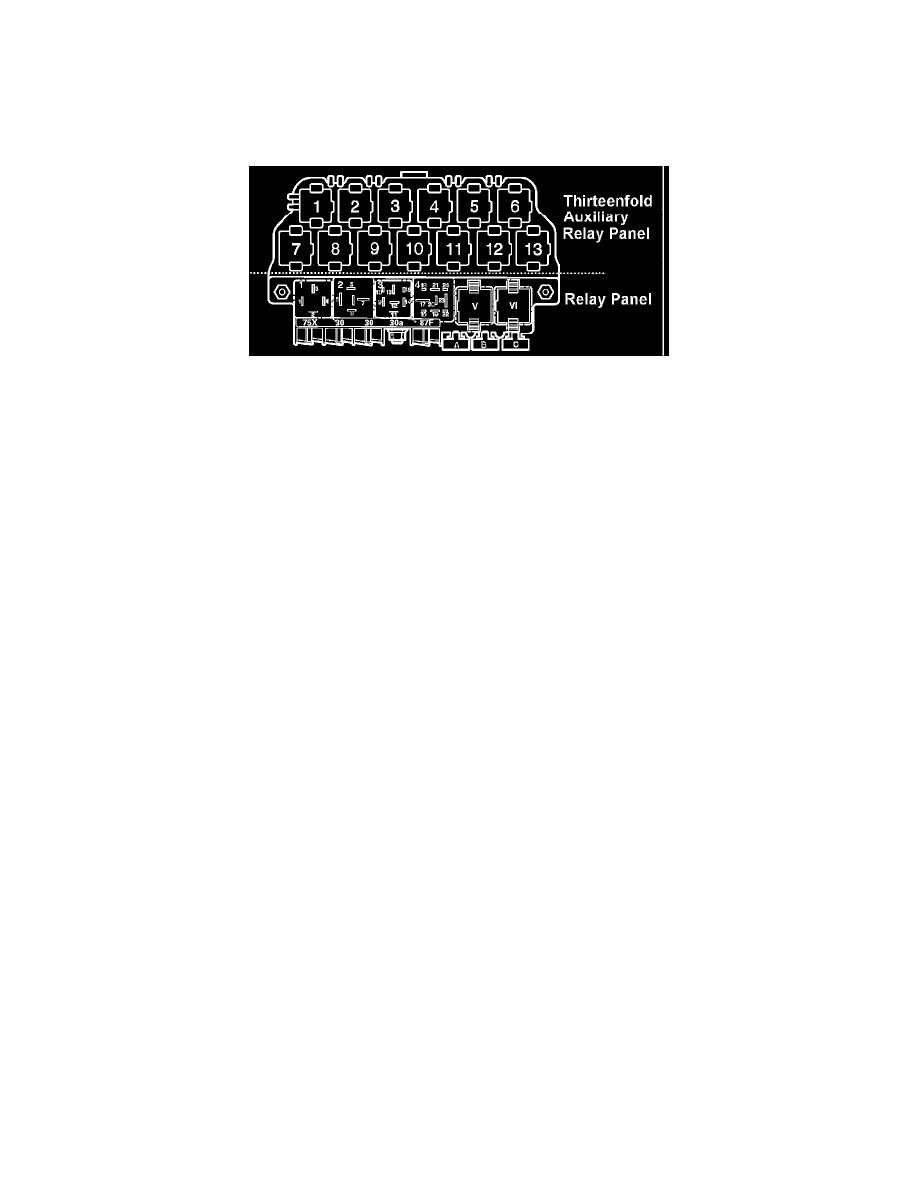

Relay location on the thirteen position auxiliary relay panel, above relay panel:
1
-
Auxiliary Emergency Flasher Relay (404)
2
-
Relay for Motor Remote Unlock Rear Lid (79)
3
-
Starting Interlock Relay (53) (185) (465)
4
-
Fog Light Relay (53)
5
-
Control Module for Multi-function Steering Wheel (450)
6
-
Control Module for Multi-function Steering Wheel (450)
7
-
Daytime Running Lights Change-over Relay (173), from April 1999
8
-
Daytime Running Lights Change-over Relay (173), through March 1999
9
-
Dual Horn Auxiliary Relay (53)
10
-
Glow Plug Relay (180)
10
-
Warning Lamp Auxiliary Relay (200)
11
-
Park/Neutral Position (PNP) Relay (175)
12
-
Power Supply (Terminal 30, B+) Relay (109)
Relay Panel:
1
-
Dual Horn Relay (53)
2
-
Load Reduction Relay (18) (100)
4
-
Fuel Pump (FP) Relay (409)
V -
Wiper/Washer Intermittent Relay (192) (377) (389)
VI -
Wiper/Washer Intermittent Relay (192) (377) (389)
NOTE Number in parentheses ( ) indicates production control number stamped on relay housing.
