Golf GL L4-2.0L (AZG) (2001)

Page 1
background image

Daytime Running Lamp Relay: Locations

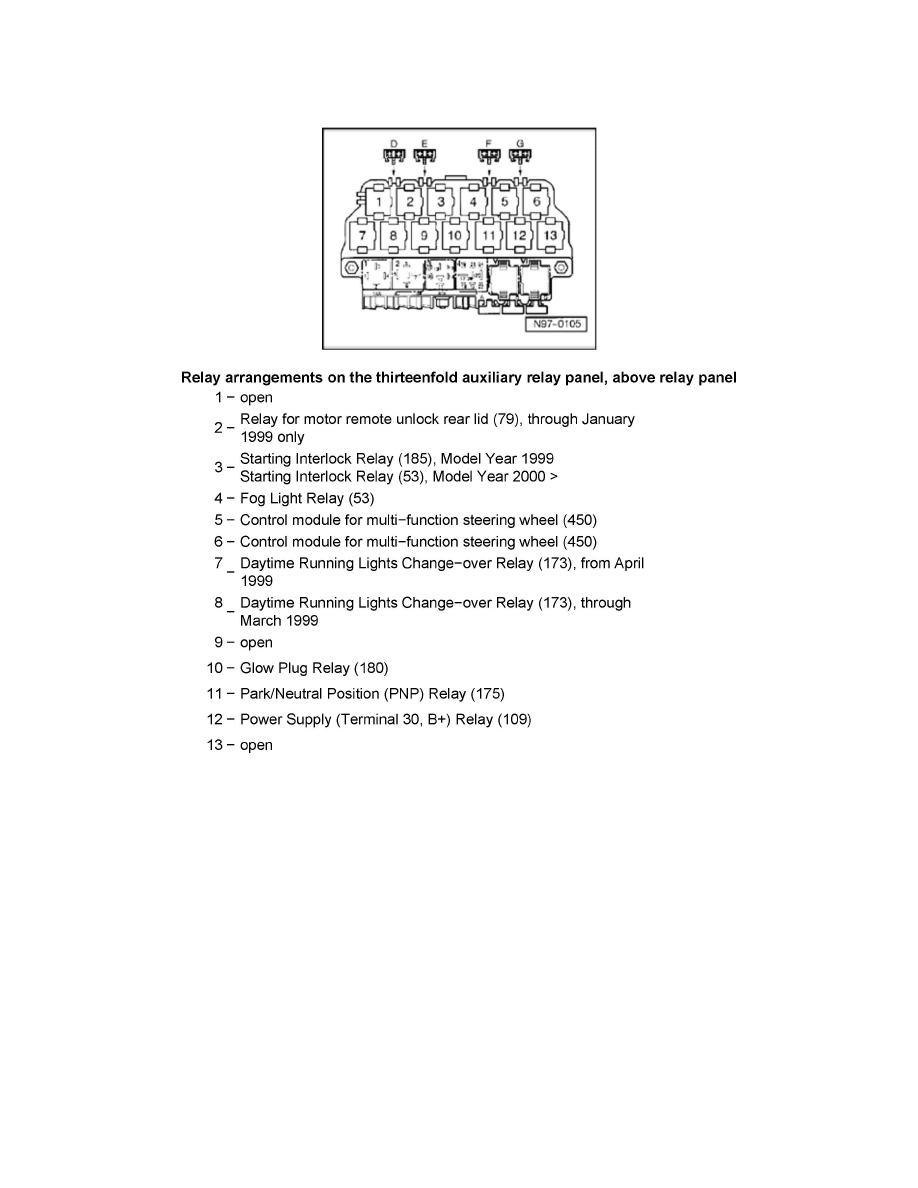

Relay Arrangements on the Thirteenfold Auxiliary Relay Panel, Above Relay Panel

Relay arrangements on the thirteenfold auxiliary relay panel, above relay panel
