GTI L4-2.0L Turbo (CBFA) (2008)
/Page-507002.png)
12 - Camshaft Timing Chain
^
Before removing, mark the direction of rotation with paint
13 - Camshaft Timing Chain Guide Rail
14 - Guide Pins
^
20 Nm
15 - Chain Sprocket
^
Crankshaft

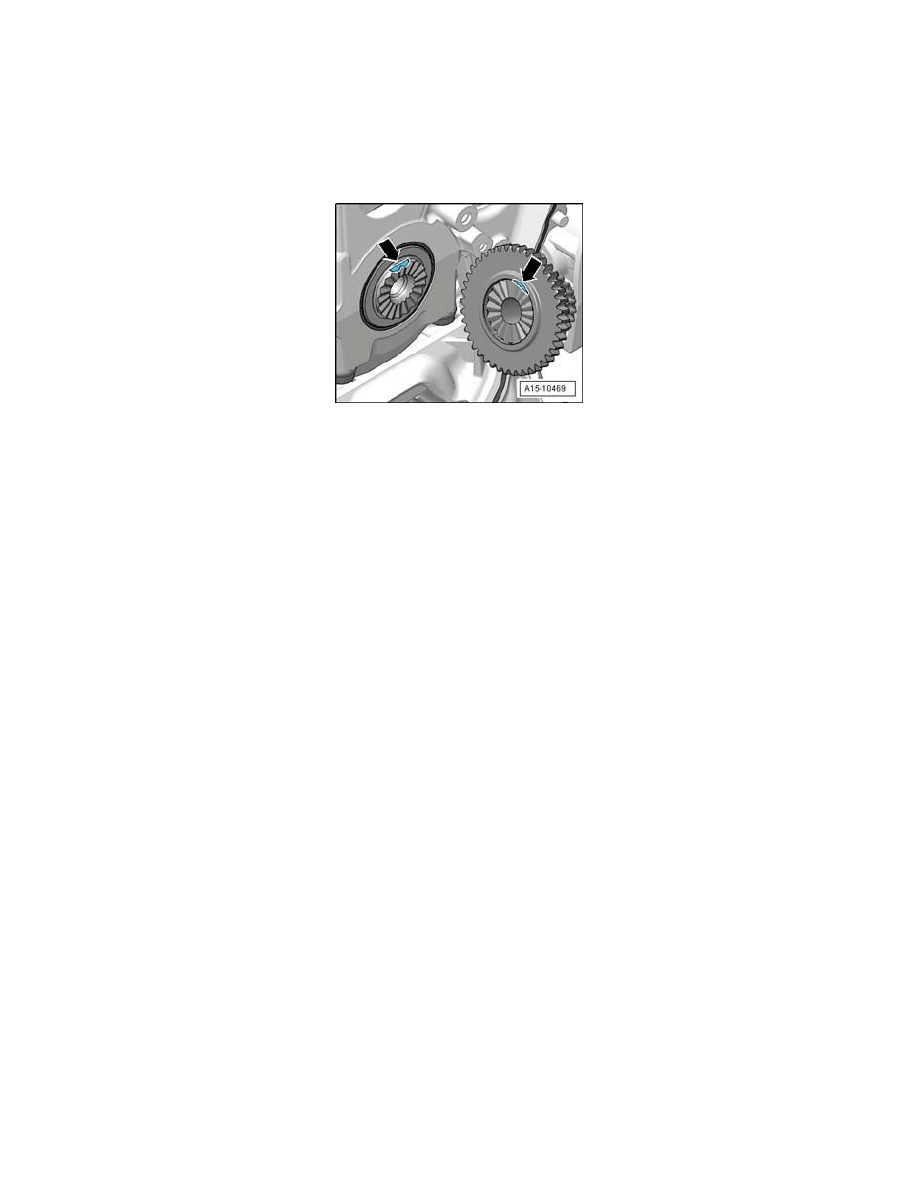

Crankshaft Chain Sprocket Installation Position
^
Both surfaces must - arrows - must line up across from each other.
