GTI L4-2.0L Turbo (CBFA) (2008)
Alignment: Description and Operation
Alignment General Information
The vehicle may only be measured with a VW/AUDI approved wheel alignment machine!
Wheel alignment checks must always include both the front and rear axles.
Otherwise centering of toothed shaft cannot be guaranteed!
-
Perform alignment using the alignment computer.
Any information needed for wheel alignment can be found in wheel alignment computer.
Current data updates are stored in VW ServiceNet.
Note:
^
Wheels should not be aligned until the vehicle has been driven 1,000 to 2,000 km, since it takes this long for the coil springs to settle.
^
The individual specifications should be followed as exactly as possible when making adjustments.
When Vehicle Alignment is Necessary
^
Vehicle shows handling problems.
^
There is an accident damage and components were replaced.
^
Axle components have been removed or replaced.
^
Tire wear patterns are uneven.

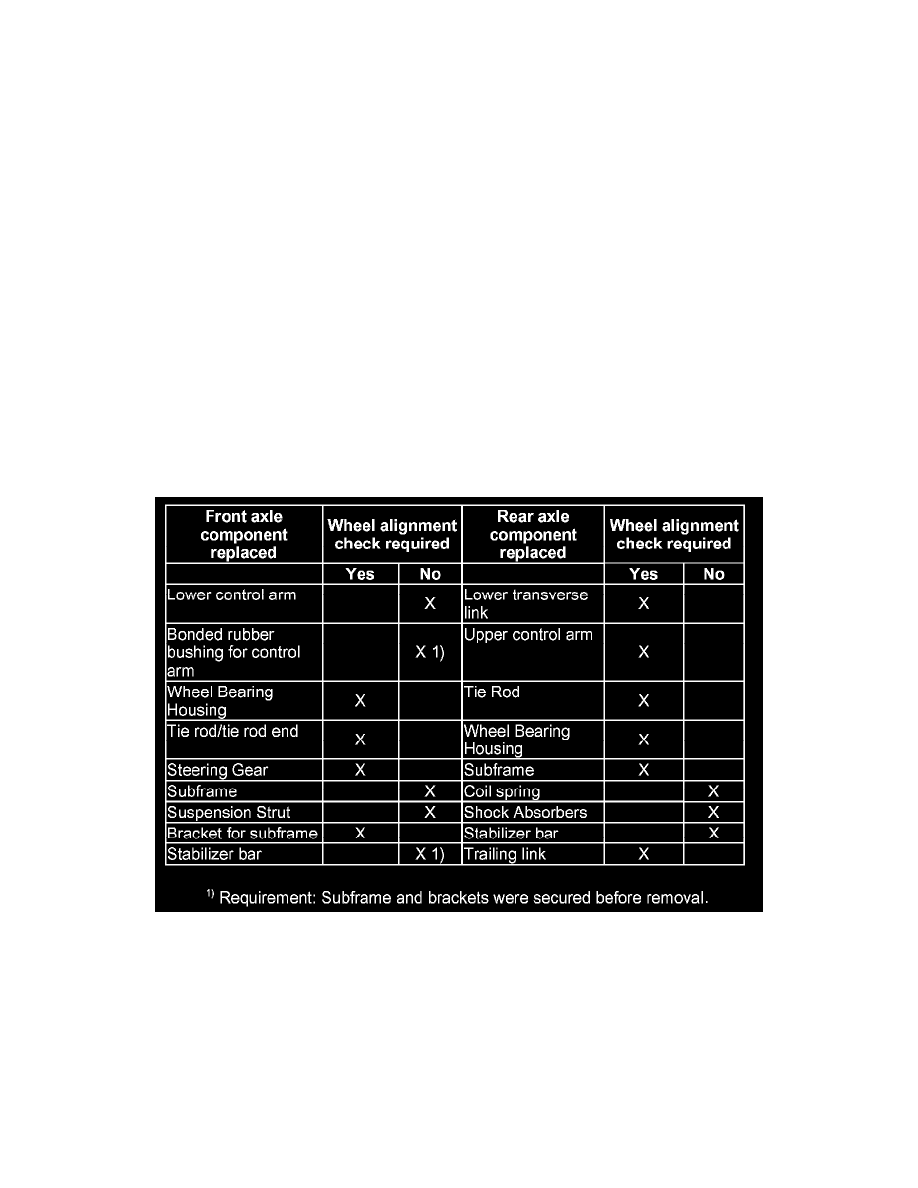

Components replaced
Components removed and installed
