Alignment: Specifications

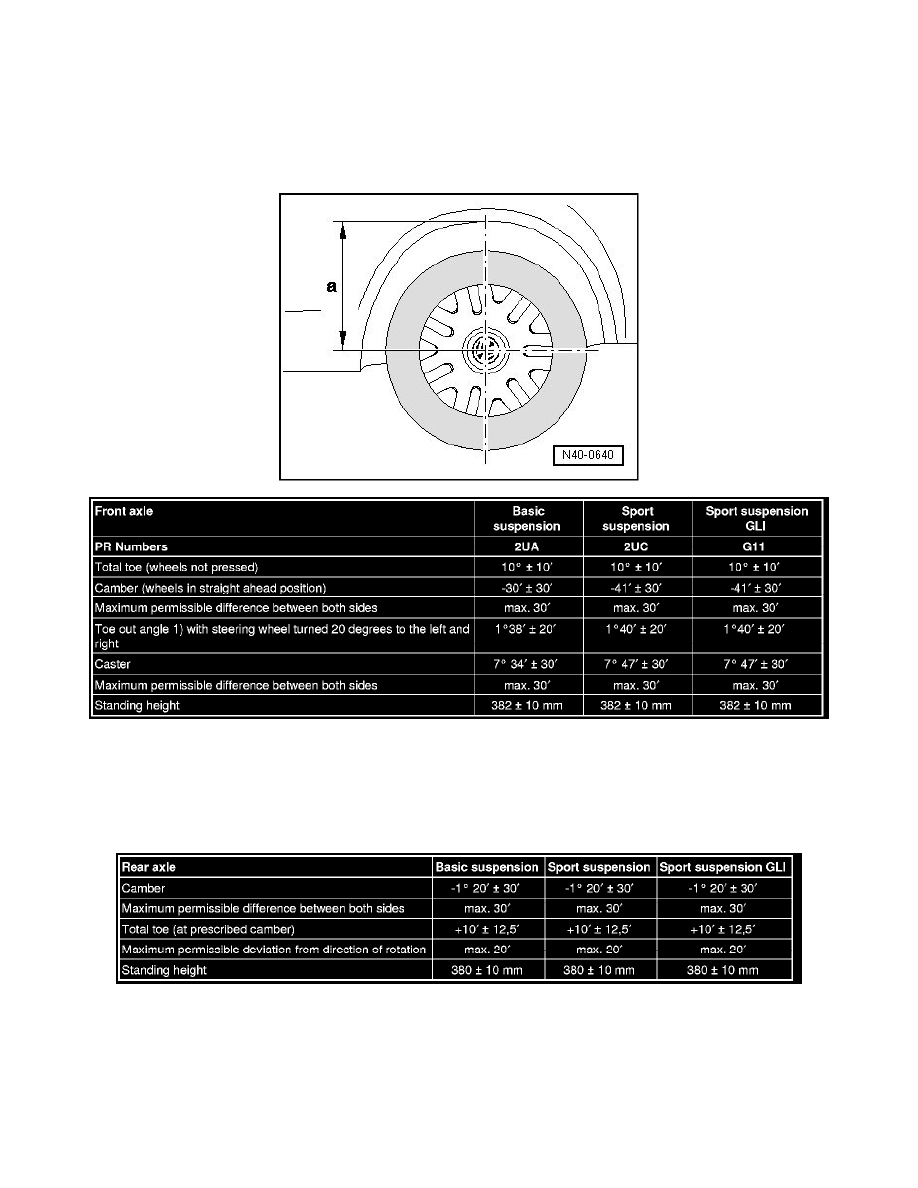

Vehicle Alignment Specifications

‹› For an explanation of the Product Relevant (PR) numbers, refer to --> [ Explanation for Product Relevant (PR) Number on Vehicle Data Label ]

See: Service and Repair/Vehicle Data Label.

Standing heights listed in the table refer to dimension -  a -.

1) The toe angle difference can also be indicated negatively in alignment computer, depending on manufacturer.

Specified values valid for all engine versions.

‹› For an explanation of the PR numbers, refer to --> [ Explanation for Product Relevant (PR) Number on Vehicle Data Label ] See: Service and

Repair/Vehicle Data Label.
