Grille: Service and Repair

Radiator Grill, Removing And Installing

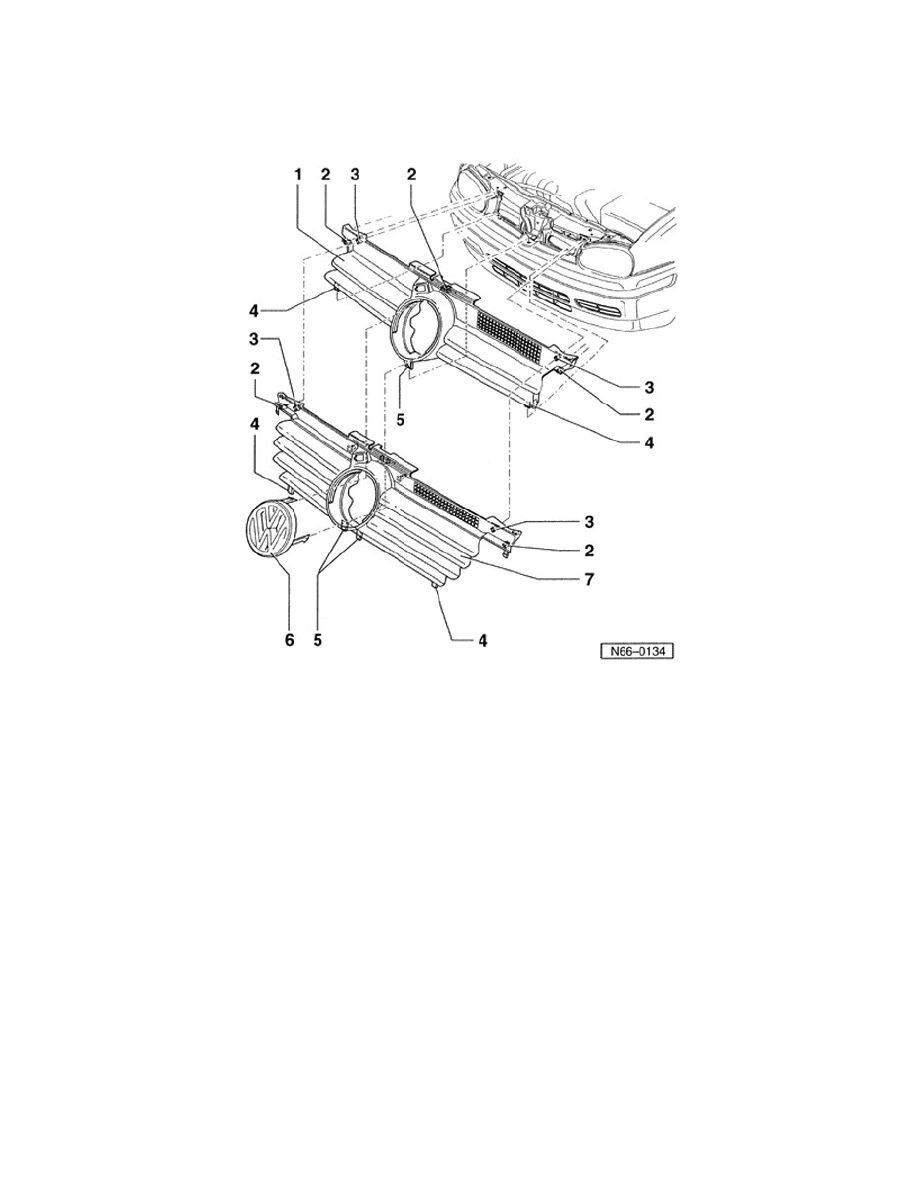

Assembly overview

1

-

Radiator grille
-

Golf

-

Material-ASA

2

-

Catches

3

-

Cross pins

4

-

Retaining pins

5

-

Center locating point

6

-

VW emblem
-

Clipped in to radiator grille

7

-

Radiator grille
-

Jetta

-

Material-ASA
