Jetta L5-2.5L (BGP) (2006)
/Page-415001.png)

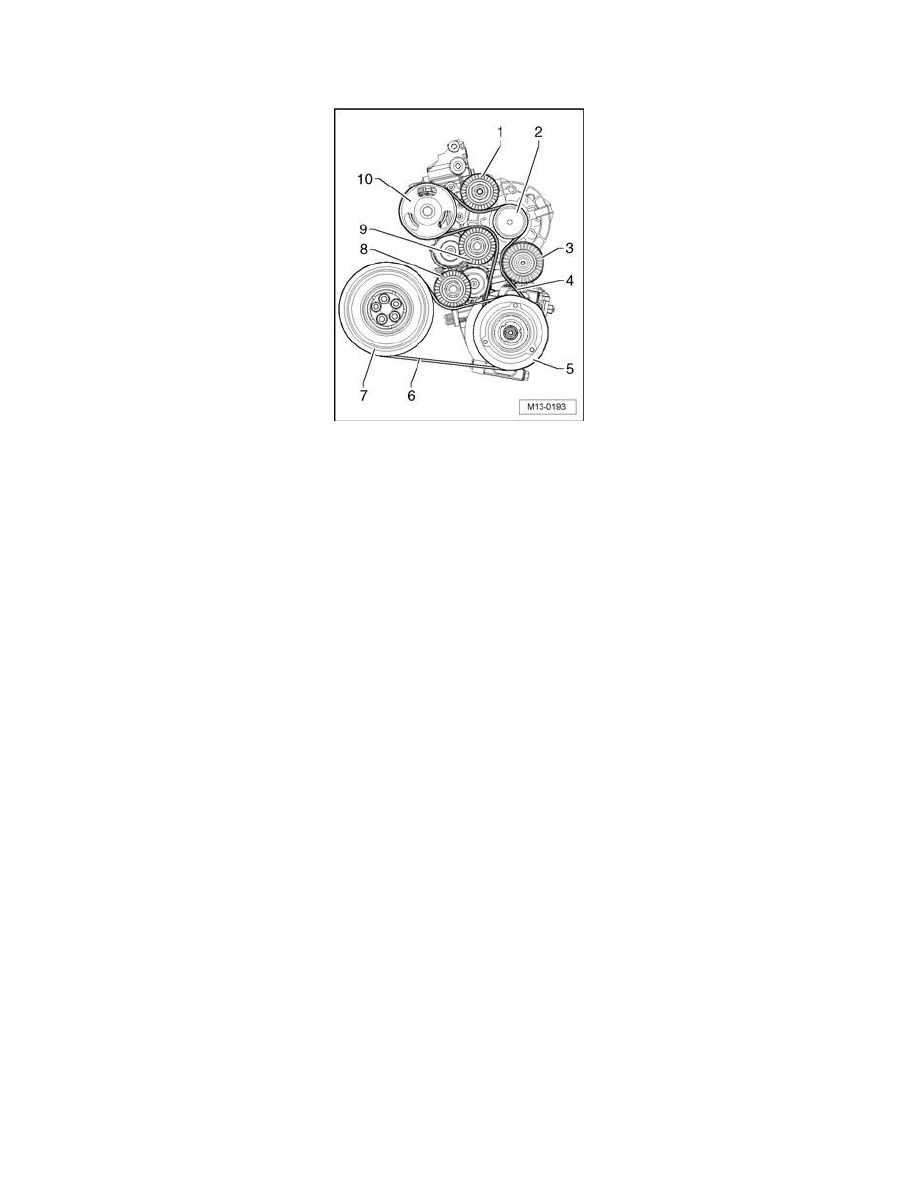

Drive Belt: Diagrams
Ribbed belt routing
1. Upper idler pulley
2. Belt pulley - generator
3. Lower idler pulley
4. Ribbed belt for generator and coolant pump
5. Belt pulley - air conditioning compressor
6. Ribbed belt for A/C compressor
7. Belt pulley - crankshaft
8. Tension roller for A/C compressor ribbed belt
9. Tensioning roller for generator and coolant pump ribbed belt
10. Belt pulley - coolant pump
