Jetta L5-2.5L (CBTA) (2008)

Page 3
background image

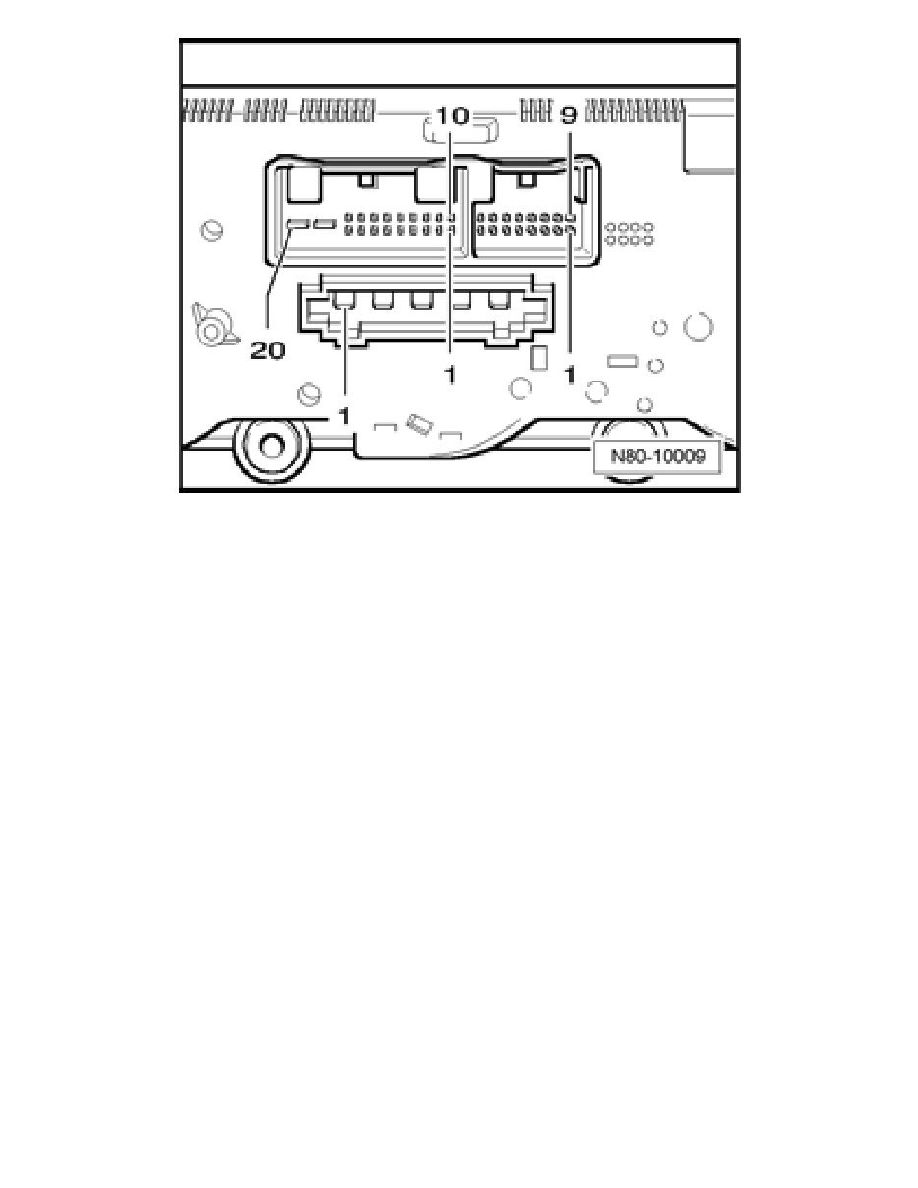

5-pin electrical connection, T5

1

-

3rd blower speed

2

-

2nd blower speed

3

-

1st blower speed

4

-

4th blower speed

5

-

Terminal X
