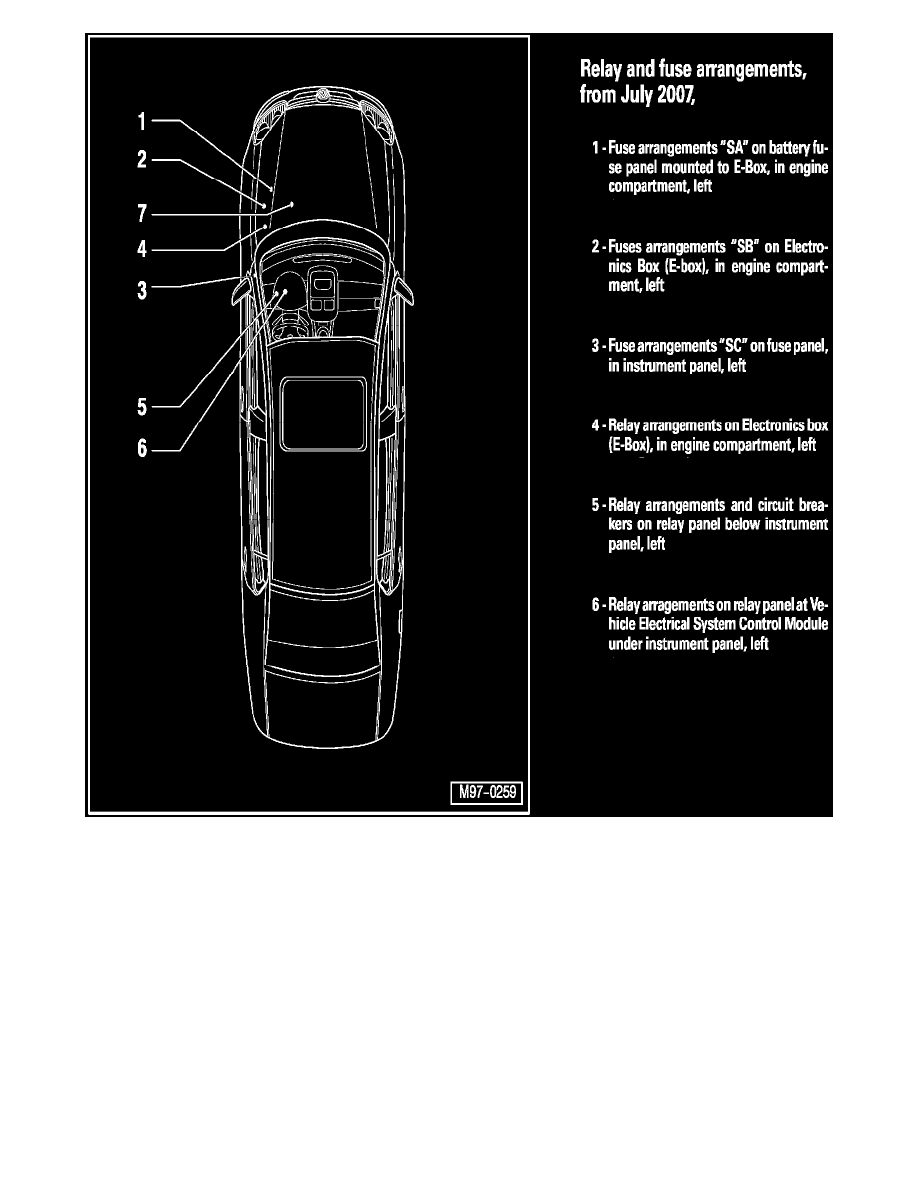

Relay and Fuse Arrangements, From July 2007|Page 4784 > < Relay and Fuse Arrangements, From July 2007|Page 4782

Jetta L5-2.5L (CBTA) (2008)

Page 1
background image

Fuse: Application and ID

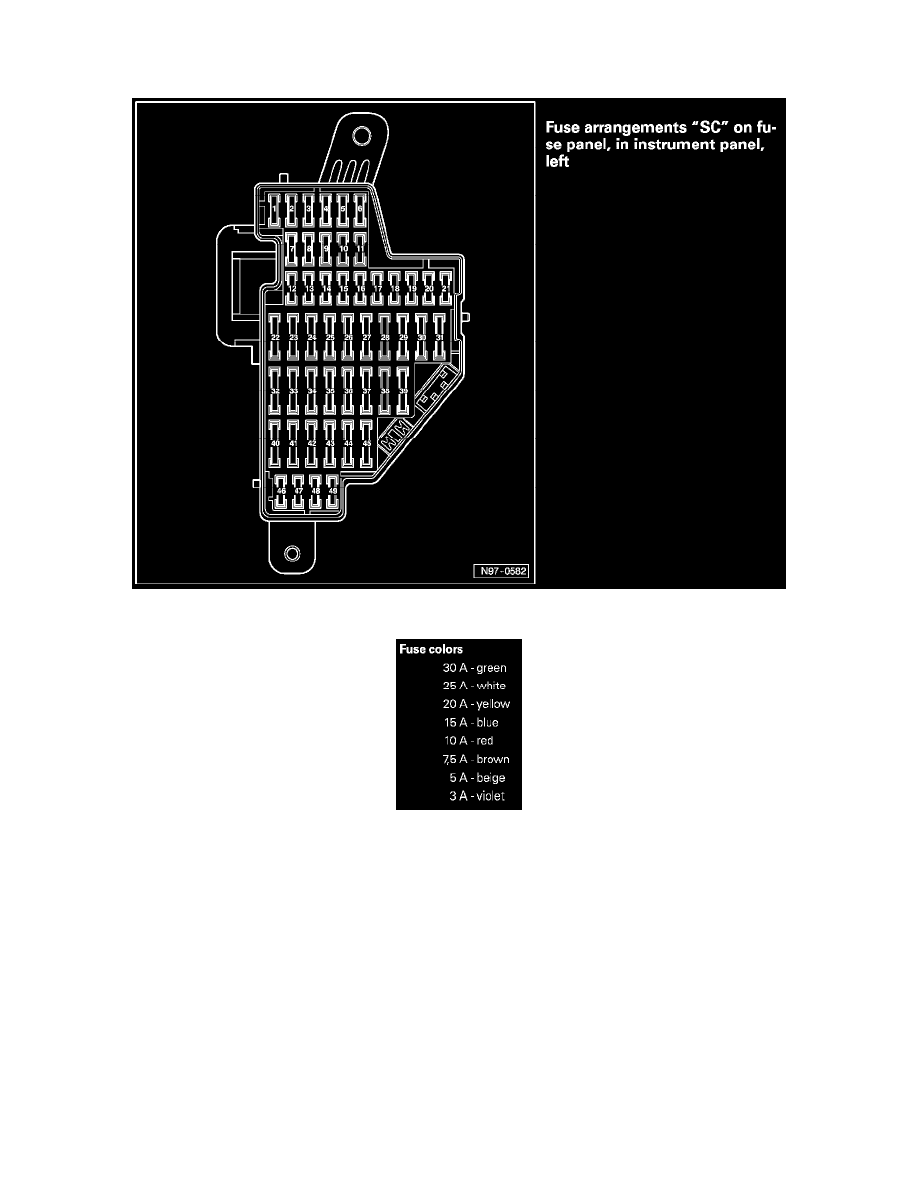

Fuse Arrangements "SC" on Fuse Panel, In Instrument Panel, Left, From July 2007

Fuse Arrangements "SC" On Fuse Panel, In Instrument Panel, Left

Fuse Colors

Relay and Fuse Arrangements, From July 2007|Page 4784 > < Relay and Fuse Arrangements, From July 2007|Page 4782
