Jetta L5-2.5L (CBTA) (2008)
Power and Ground Distribution
Fuse / Component Information
Application and ID / Relay and Fuse Arrangements, From July 2007
Page 4784
Page 2

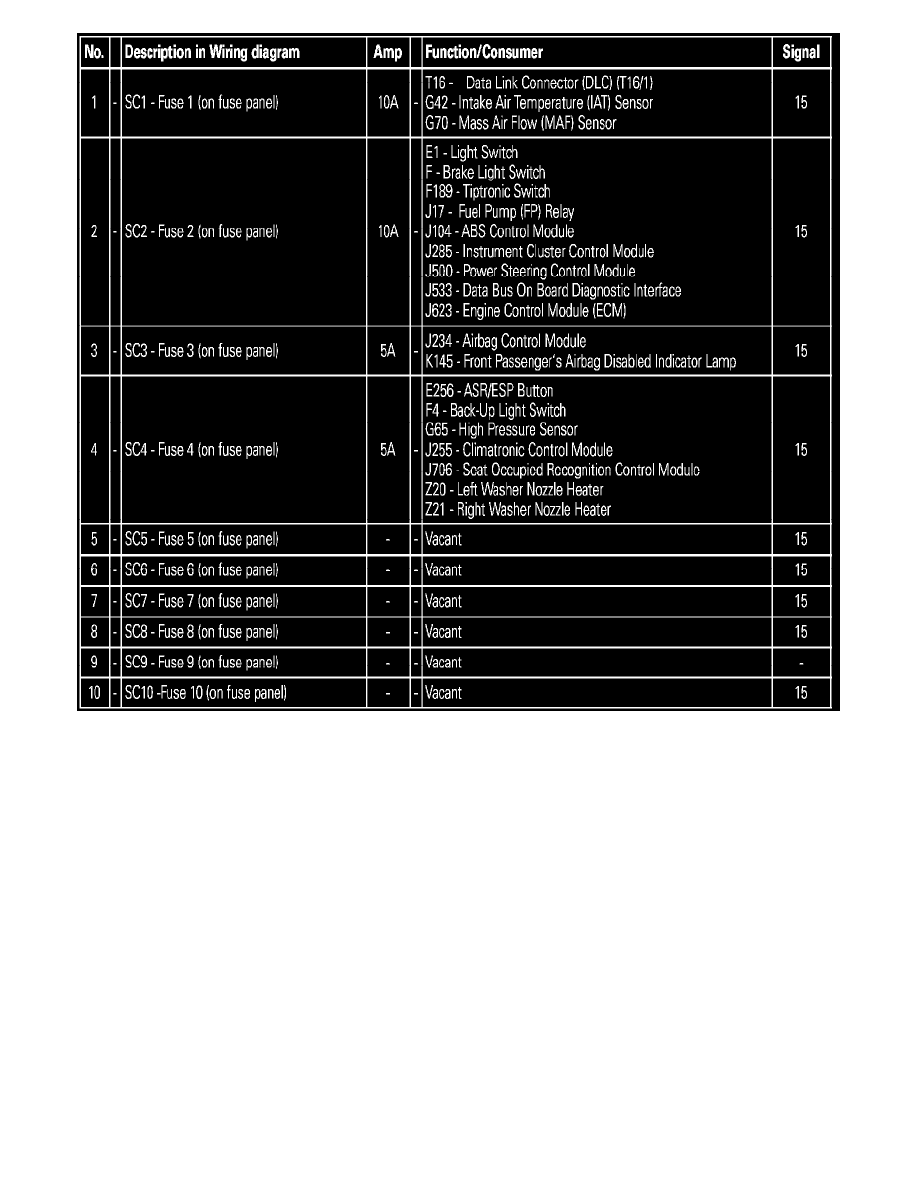

Fuses 1 To 10
Power and Ground Distribution
Fuse / Component Information
Application and ID / Relay and Fuse Arrangements, From July 2007
Page 4784
